Chapter 3 51

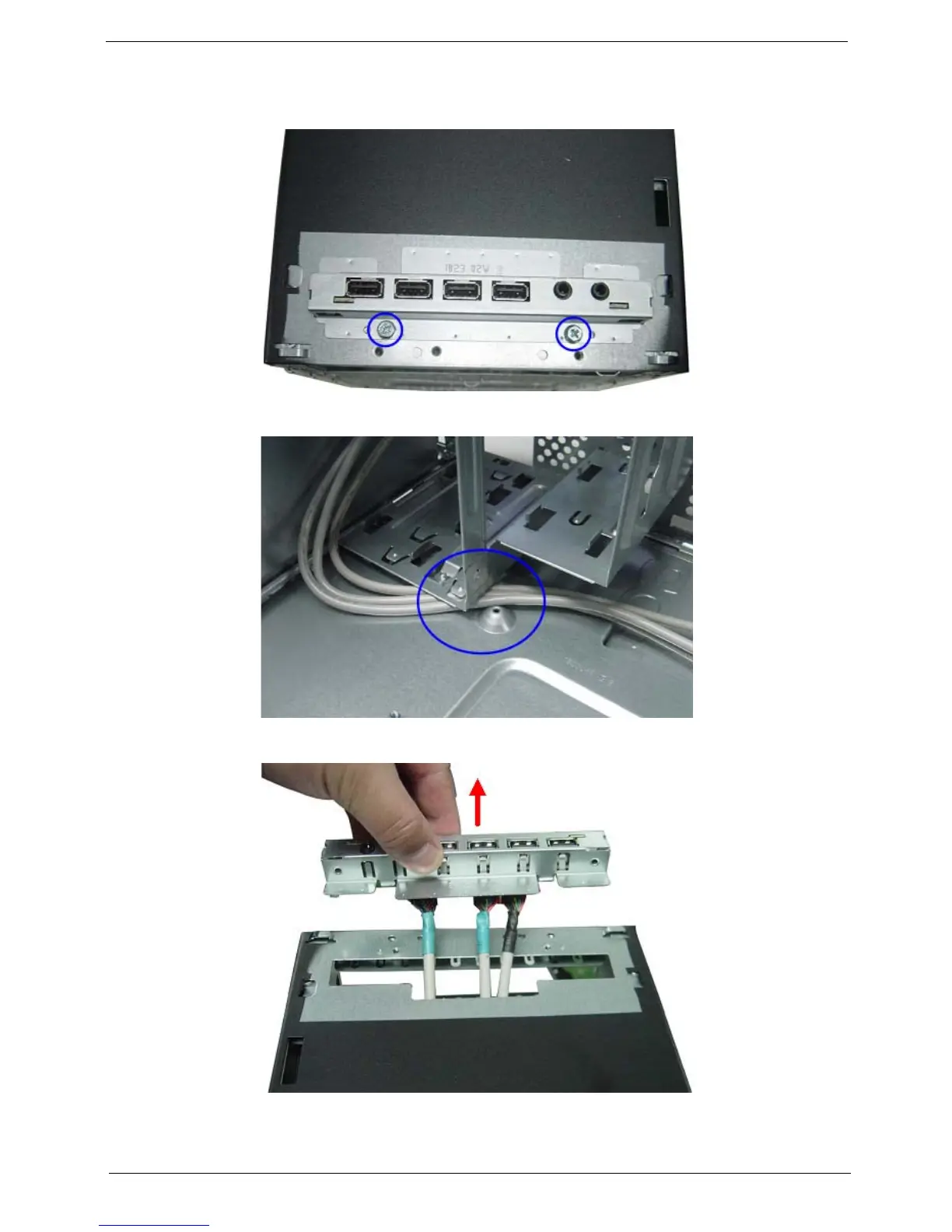

Removing the Top USB and Audio I/O Assembly
1. Removing the two screws from the chassis.
2. Release these cables from the chassis.
3. Lift the top USB and audio I/O assembly away from chassiss.
