Chapter 3 47

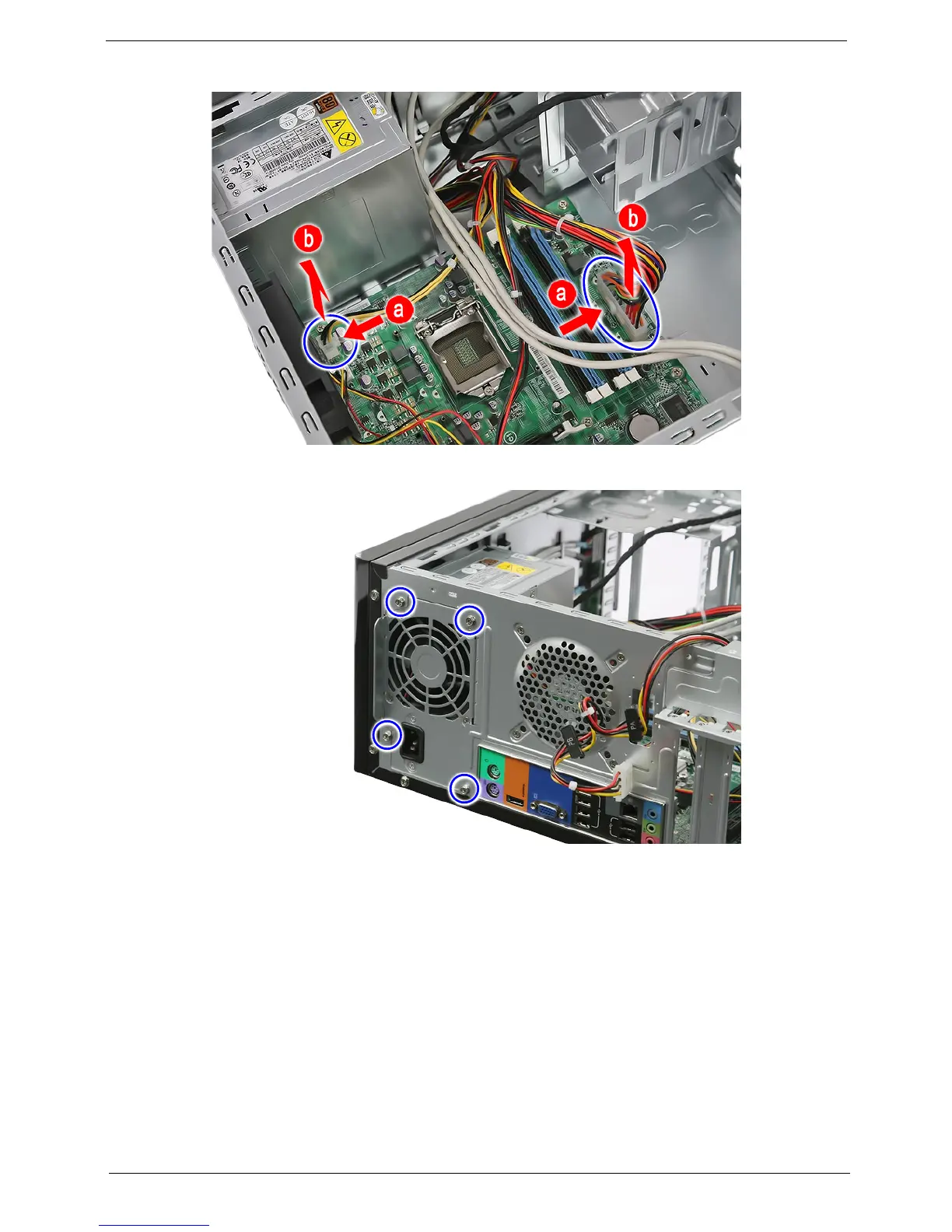

2. Disconnect the 24-pin and 4-pin power supply cables from the mainboard.
3. Remove the four screw that secures the power supply to the chassis.
