102 Chapter 6

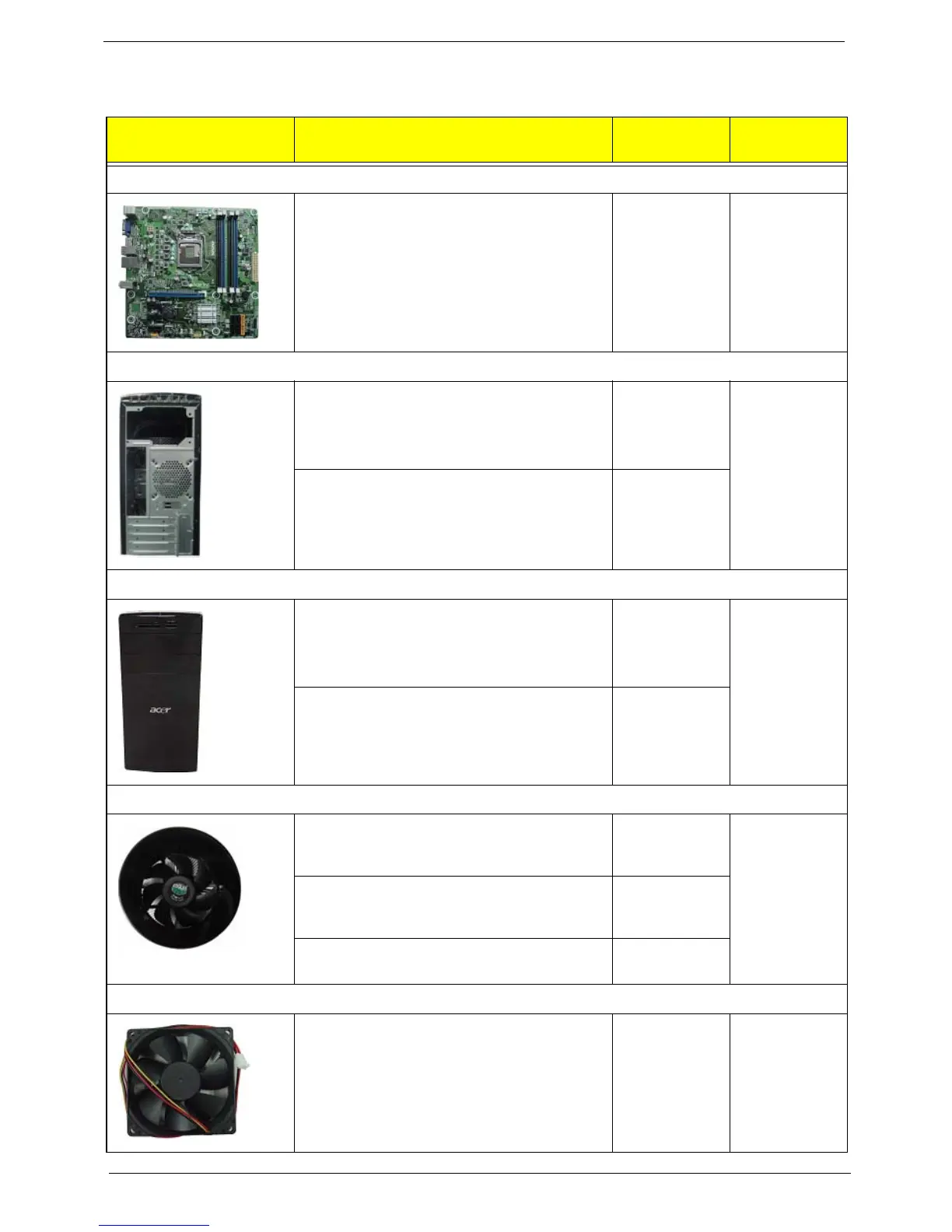

Aspire M3970 FRU List
Category Part Number Acer P/N
Exploded
Diagram Item
MB Kit
MB kit aVictoria Intel H67 Realtek 8111E Acer
Logo uATX W/O 1394 LF w/o USB3.0, B3 stepping
MB.SG50P.005 5
Chassis
Aspire 2011 M3 w/o HDD carrier HS.13100.212 N/A
Aspire 2011 M3 w/ HDD carrier HS.13100.213
Bezel
Aspire 2011 M3 w/o HDD carrier PZ.11900.244 N/A
Aspire 2011 M3 w/ HDD carrier PZ.11900.245
CPU Cooler
Cooler Intel LGA1156 AVC ZGUL00A201 w/i
72mm duct, 35mm HS w/I fan 9225 w/i 72mm fan
duct
HI.10800.048 N/A
FAN Cooler Intel LGA 1156 w/ 69mm fan duct_TM
PN PKP775G01U(K)12, 51mm HS with 69mm fan
duct
HI.10800.049
HS: Pure Al. (sunflower)-94.36mm*94.36mm*40h /
Screw Type
HI.10800.058
System Fan
System Fan KDE 1209/GP 92*92*25 (Rohs) HI.S150F.002 N/A
