24

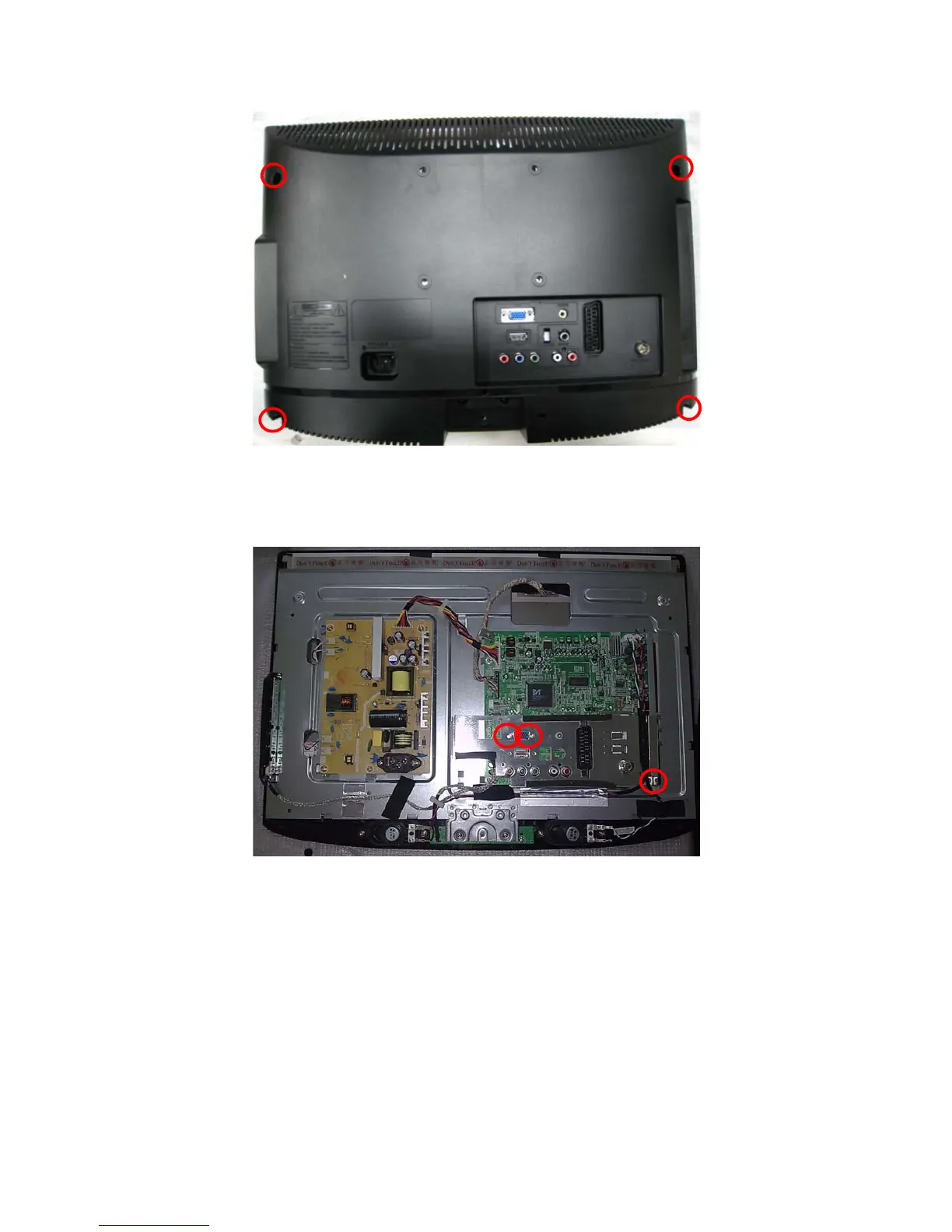

Disassemble the back cover
1. Remove four screws to remove back cover. (Fig 4)
(Fig 4)
Remove the Shielding-EMI
(Fig 5)
