Disassembly Procedures 1-19
9. Gently lift the mainboard from the left side and remove it from the top assembly
(Figure 1-24).

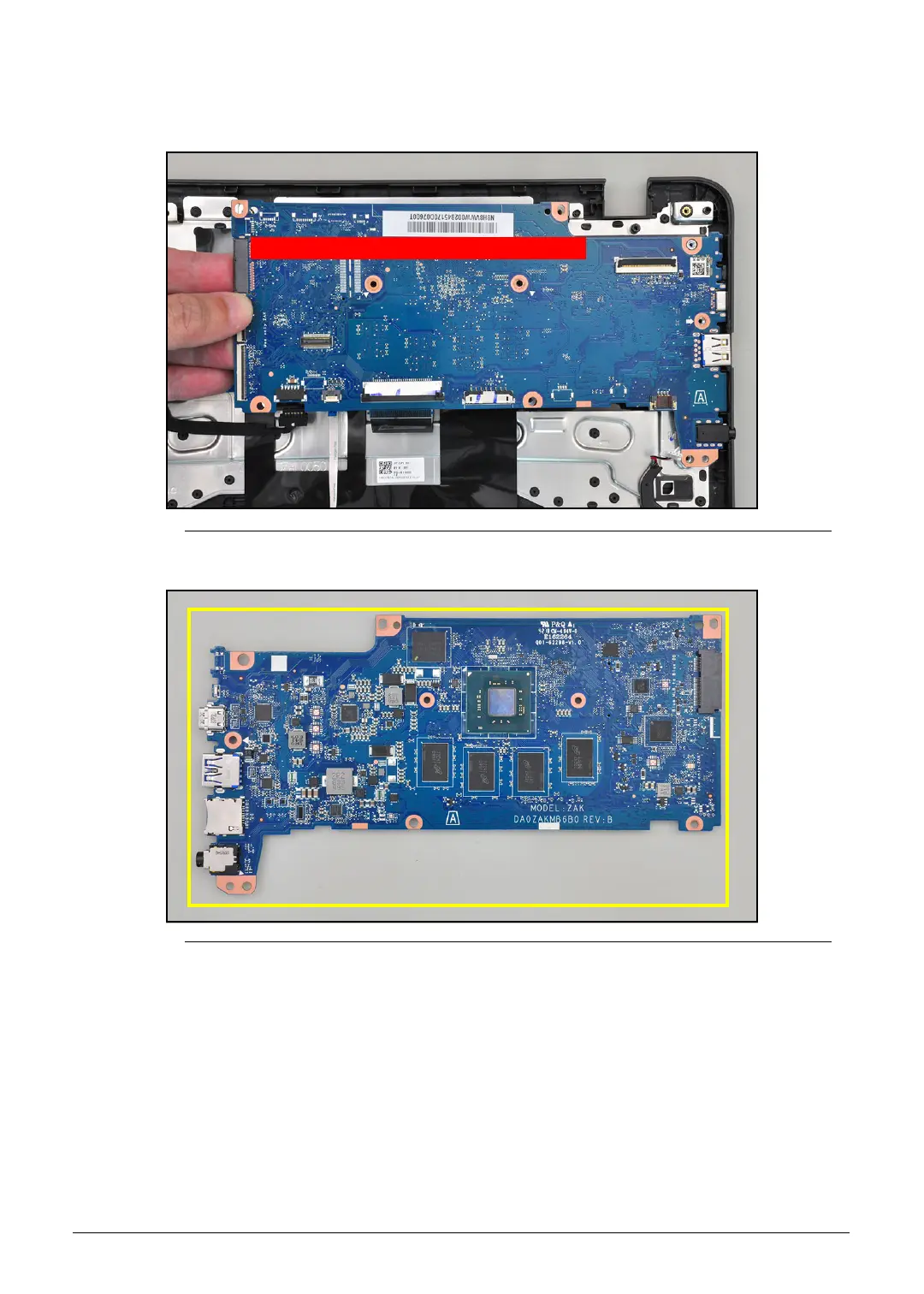

Figure 1-24. Mainboard Removal
Figure 1-25. Mainboard
Circuit boards >10 cm² have been highlighted with a yellow rectangle as
shown in Figure 1-25. Remove the circuit board and follow local
regulations for disposal.
WEEE Annex VII Component: Mainboard
