Acer Chromebook C738T User Manual

1-14 Disassembly Procedures
LCD Module Removal 0
Prerequisite:
Battery Pack Removal
1. Disconnect the WLAN antennas (A) and remove the antennas from the cable guides
as shown in Figure 1-12.
2. Disconnect the eDP cable (B) from the mainboard connector (C) (Figure 1-15).
3. Disconnect the G-sensor control cable (D) from the mainboard (Figure 1-15).

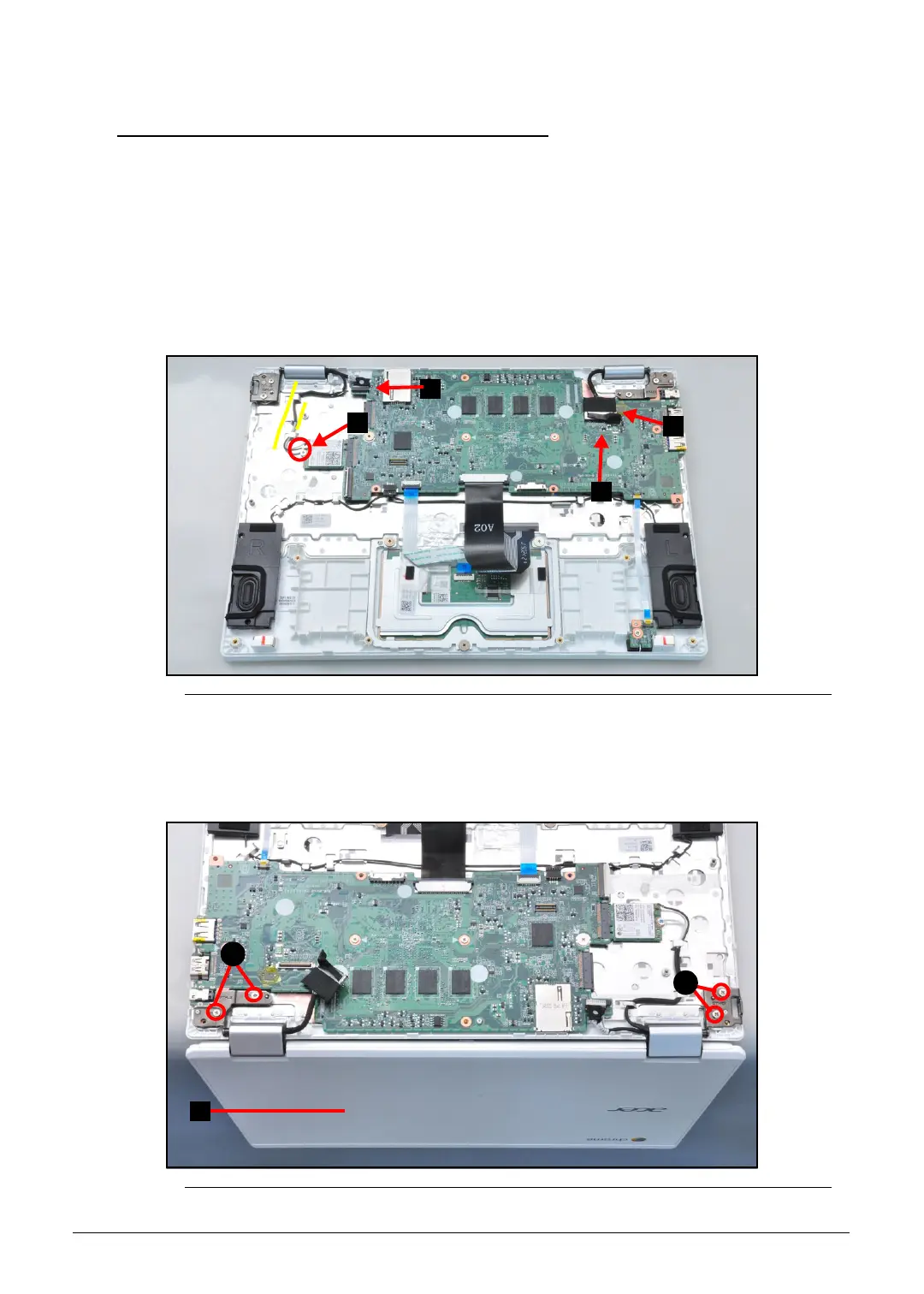

Figure 1-15. WLAN Antenna & eDP Cable Location
4. Place the system on a flat surface and open the LCD module (D) to a 120 degree
angle as shown in Figure 1-16.
5. Remove four (4) screws (E) securing the LCD module (D) in place (Figure 1-16).
Figure 1-16. LCD Module Screw Location
A
B
C
D
D
E
E

Acer Chromebook C738T Specifications

General

Processor	Intel Celeron N3150
RAM	4GB
Storage	16GB eMMC
Display	11.6-inch
Resolution	1366 x 768
Operating System	Chrome OS
Touchscreen	Yes
Graphics	Intel HD Graphics
Wireless	802.11ac Wi-Fi, Bluetooth 4.0
Processor Speed	1.6 GHz
Ports	1 x HDMI
