Acer Chromebook C738T User Manual

Disassembly Procedures 1-5
Base Cover Removal 0
1. Place the computer on a flat surface, the bottom side is up.

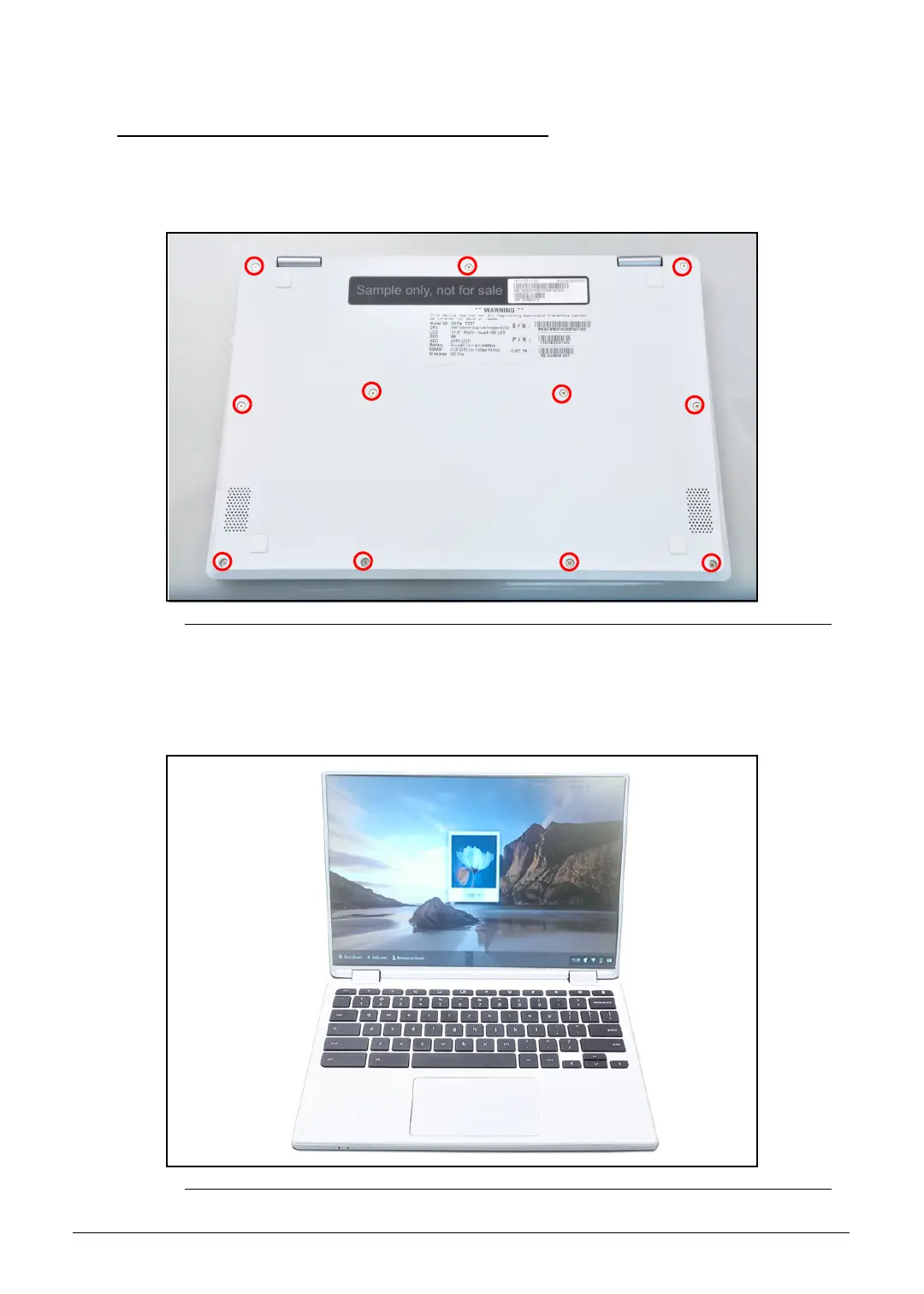

2. Remove eleven (11) screws from the base cover (Figure 1-2).
Figure 1-2. Base Cover Screw Location
3. Connect the AC adapter to the system.
4. Flip the system over and then open the LCD module to a 90-degree angle, the system
will automatically start up (Figure 1-3).
Figure 1-3. Battery Cut-off

Acer Chromebook C738T Specifications

General

Processor	Intel Celeron N3150
RAM	4GB
Storage	16GB eMMC
Display	11.6-inch
Resolution	1366 x 768
Operating System	Chrome OS
Touchscreen	Yes
Graphics	Intel HD Graphics
Wireless	802.11ac Wi-Fi, Bluetooth 4.0
Processor Speed	1.6 GHz
Ports	1 x HDMI
