Acer Chromebook C738T User Manual

1-6 Disassembly Procedures
5. Press the power key (A) and the reload key (B) to shut off the system. Once you see
the power LED turn off (C), disconnect the AC adapter immediately (Figure 1-4).

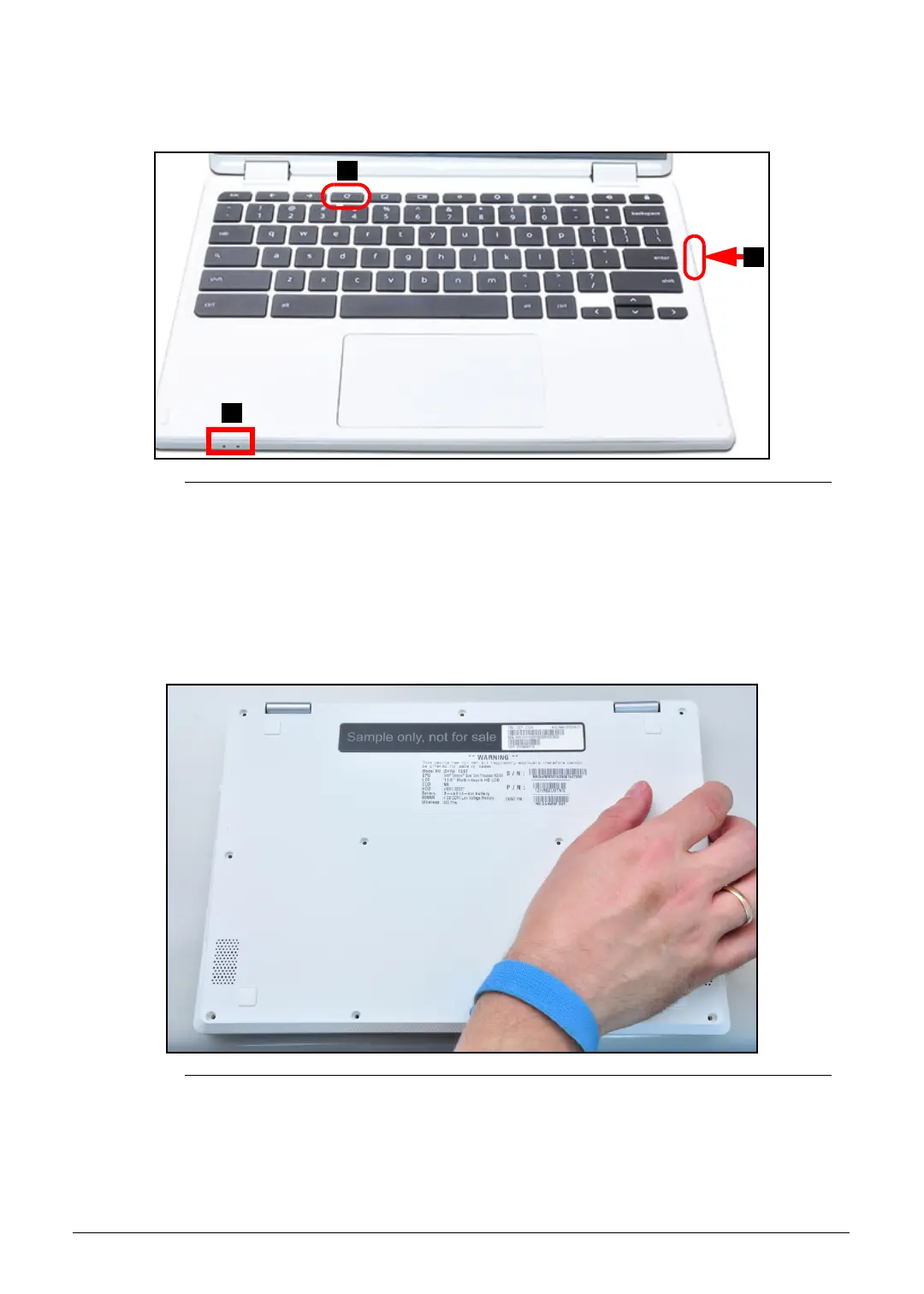

Figure 1-4. Battery Cut-off
IMPORTANT:
+
Make sure the display is dark, the system is completely powered off and
the AC adapter is removed from the system.
6. Close the LCD module and carefully flip the system over.
7. Carefully pry up the base cover starting from the right side (Figure 1-5).
Figure 1-5. Base Cover Removal
A
B
C

Acer Chromebook C738T Specifications

General

Processor	Intel Celeron N3150
RAM	4GB
Storage	16GB eMMC
Display	11.6-inch
Resolution	1366 x 768
Operating System	Chrome OS
Touchscreen	Yes
Graphics	Intel HD Graphics
Wireless	802.11ac Wi-Fi, Bluetooth 4.0
Processor Speed	1.6 GHz
Ports	1 x HDMI
