6

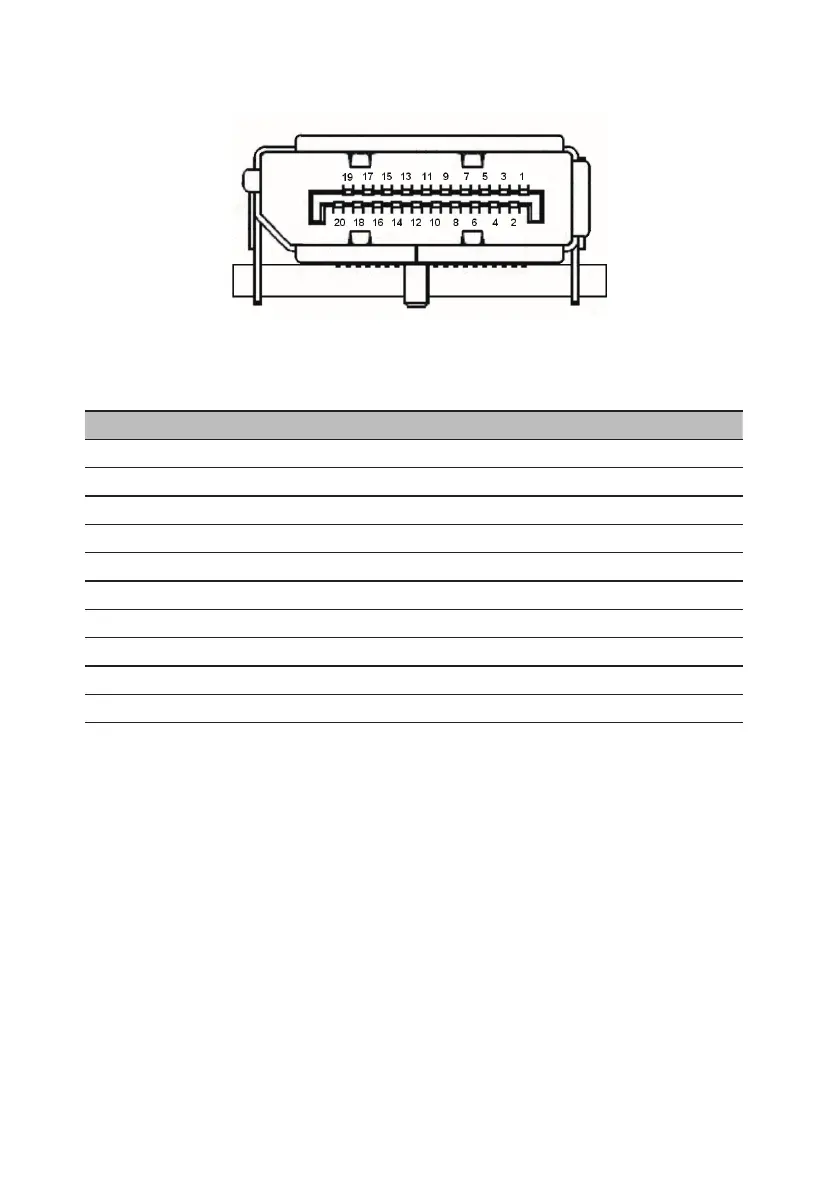

20-pin color display signal cable
PIN No. Description PIN No. Description
1 Lane0(p) 11 GND
2 GND 12 Lane3(n)
3 Lane0(n) 13 Cong1
4 Lane1(p) 14 Cong2
5 GND 15 AUX_CH (n)
6 Lane1(n) 16 GND
7 Lane2(p) 17 AUX_CH (p)
8 GND 18 Hot Plug Detect
9 Lane3(n) 19 DP Power_Return
10 Lane3(p) 20 DP Power
