7

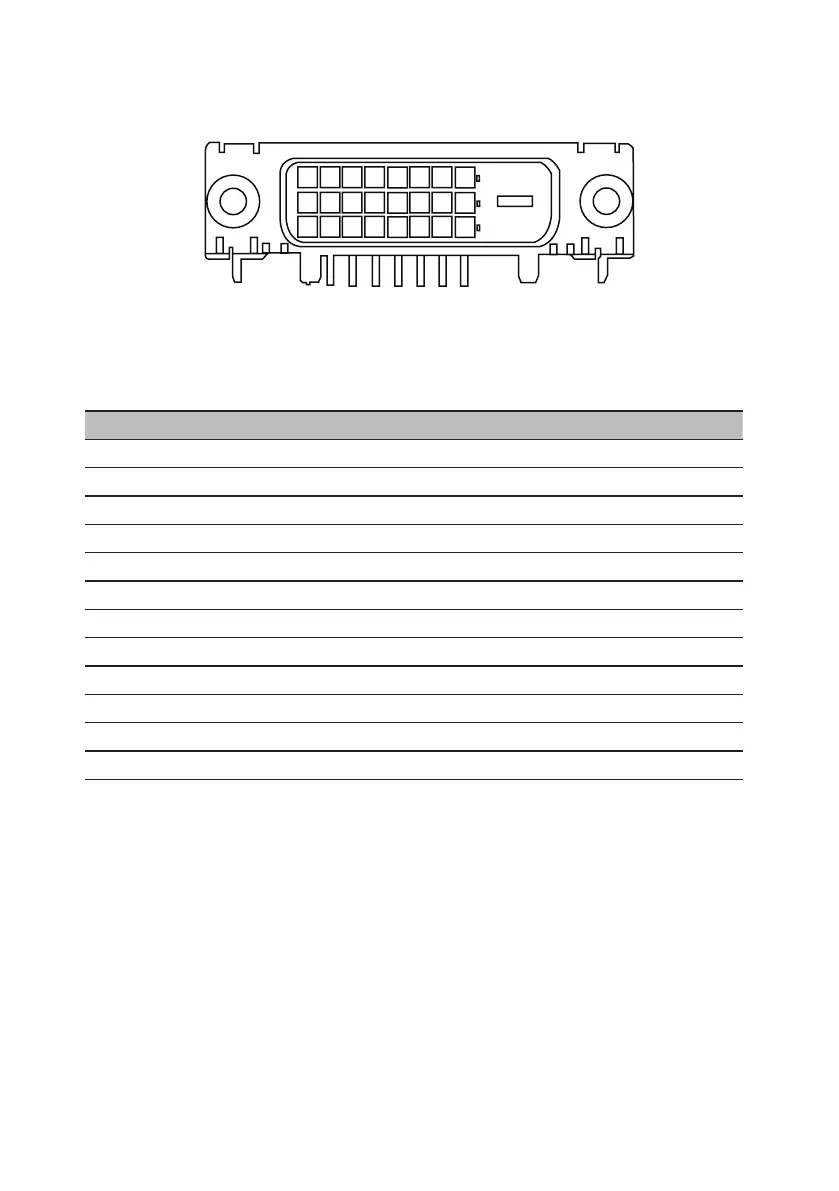

24-pin color display signal cable
PIN No. Description PIN No. Description
1 TMDS data 2- 13 TMDS data3+
2 TMDS data 2+ 14 +5 V power
3 TMDS data 2/4 shield 15 GND (return for +5 V hsync.vsync)
4 TMDS data 4- 16 Hot-plug detection
5 TMDS data 4+ 17 TMDS data 0-
6 DDC clock 18 TMDS data 0+
7 DDC data 19 TMDS data 0/5 shield
8 NC 20 TMDS data 5-
9 TMDS data 1- 21 TMDS data 5+
10 TMDS data 1+ 22 TMDS clock shield
11 TMDS data 1/3 shield 23 TMDS clock+
12 TMDS data 3- 24 TMDS clock-
