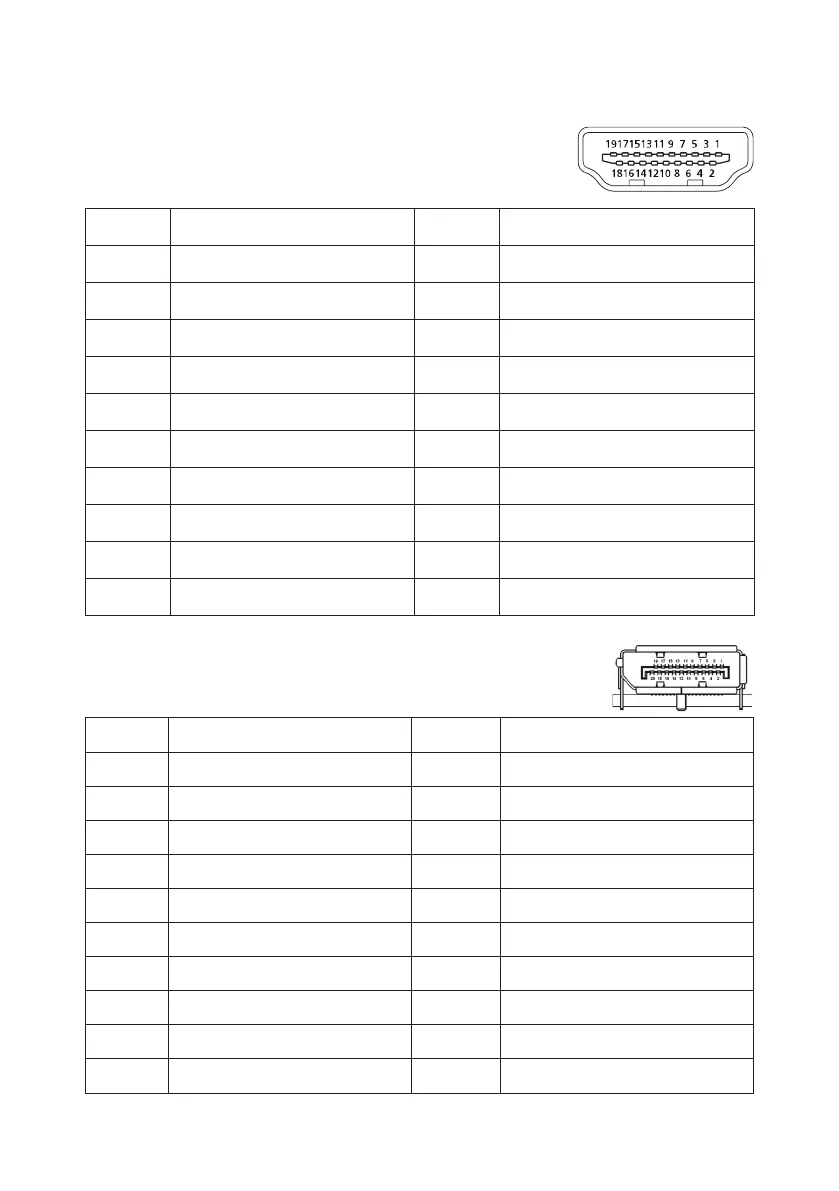

CONNECTOR PIN ASSIGNMENT

19-Pin Color Display Signal Cable*

PIN Meaning PIN Meaning

1. TMDS Data2+ 10. TMDS Clock+

2. TMDS Data2 Shield 11. TMDS Clock Shield

3. TMDS Data2- 12. TMDS Clock-

TMDS Data1+ 13. CEC

5. TMDS Data1 Shield 14. Reserved (N.C. on device)

6. TMDS Data1- 15. SCL

7. TMDS Data0+ 16. SDA

8. TMDS Data0 Shield 17. DDC/CEC Ground

9. TMDS Data0- 18. +5V Power

19. Hot Plug Detect

* only for certain models

20-Pin Color Display Signal Cable*

PIN Description PIN Description

1. Lane0(p) 11. GND

2. GND 12. Lane3(n)

3. Lane0(n) 13. Config1

4. Lane1(p) 14. Config2

5. GND 15. AUX_CH (n)

6. Lane1(n) 16. GND

7. Lane2(p) 17. AUX_CH (p)

8. GND 18. Hot Plug Detect

9. Lane3(n) 19. DP Power_Return

10. Lane3(p) 20. DP Power

* only for certain models
