LCD Monitor Quick Start Guide - 3

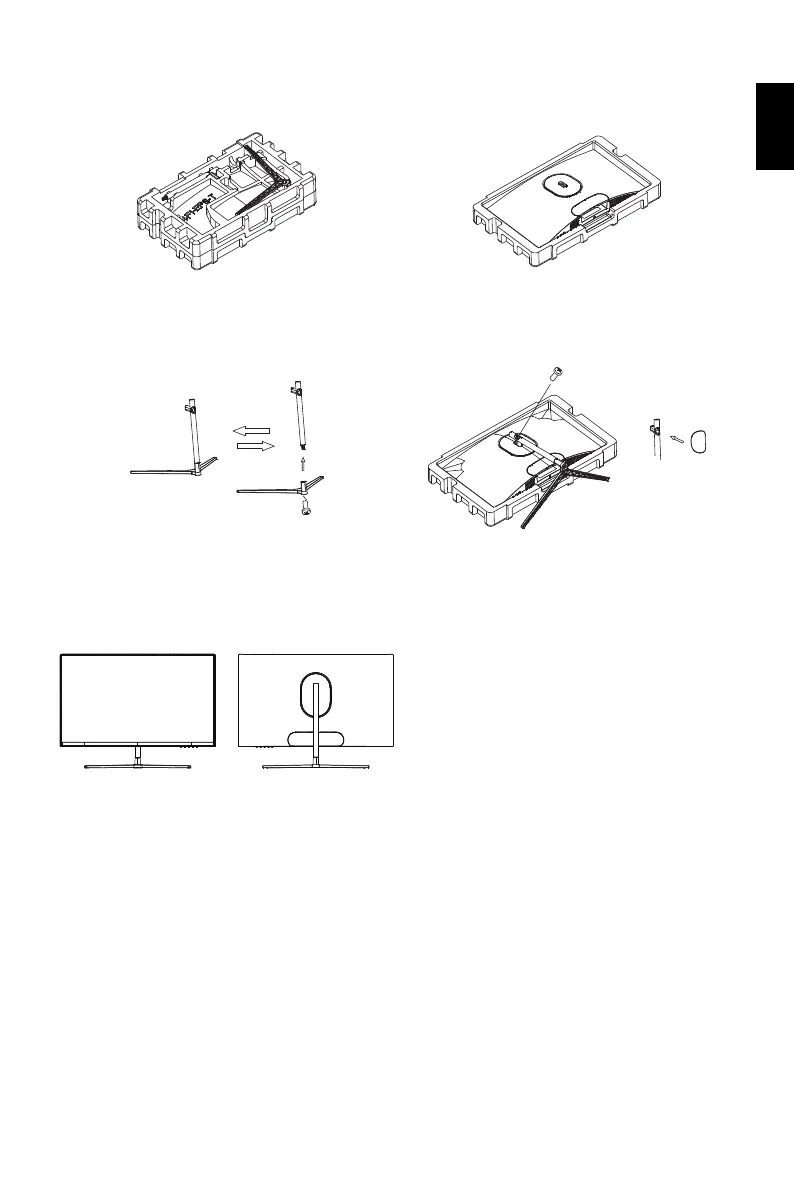

Attaching the monitor to the base
1. Unpack the box. Take out the
styrofoam and accessories.
2. Remove upper styrofoam and
monitor's protected bag.
3. Tighten base and stand arm with one
screw.
4. Tighten stand arm and monitor with
one screw, then put in the cover
rubber.
5. Flip the LCD monitor over to make it
stand upright on the desk where it will
be used. (Note: Do NOT press the
screen to avoid damage any time.)
