Acer Ferrari One 200 Service Guide

Chapter 3 71

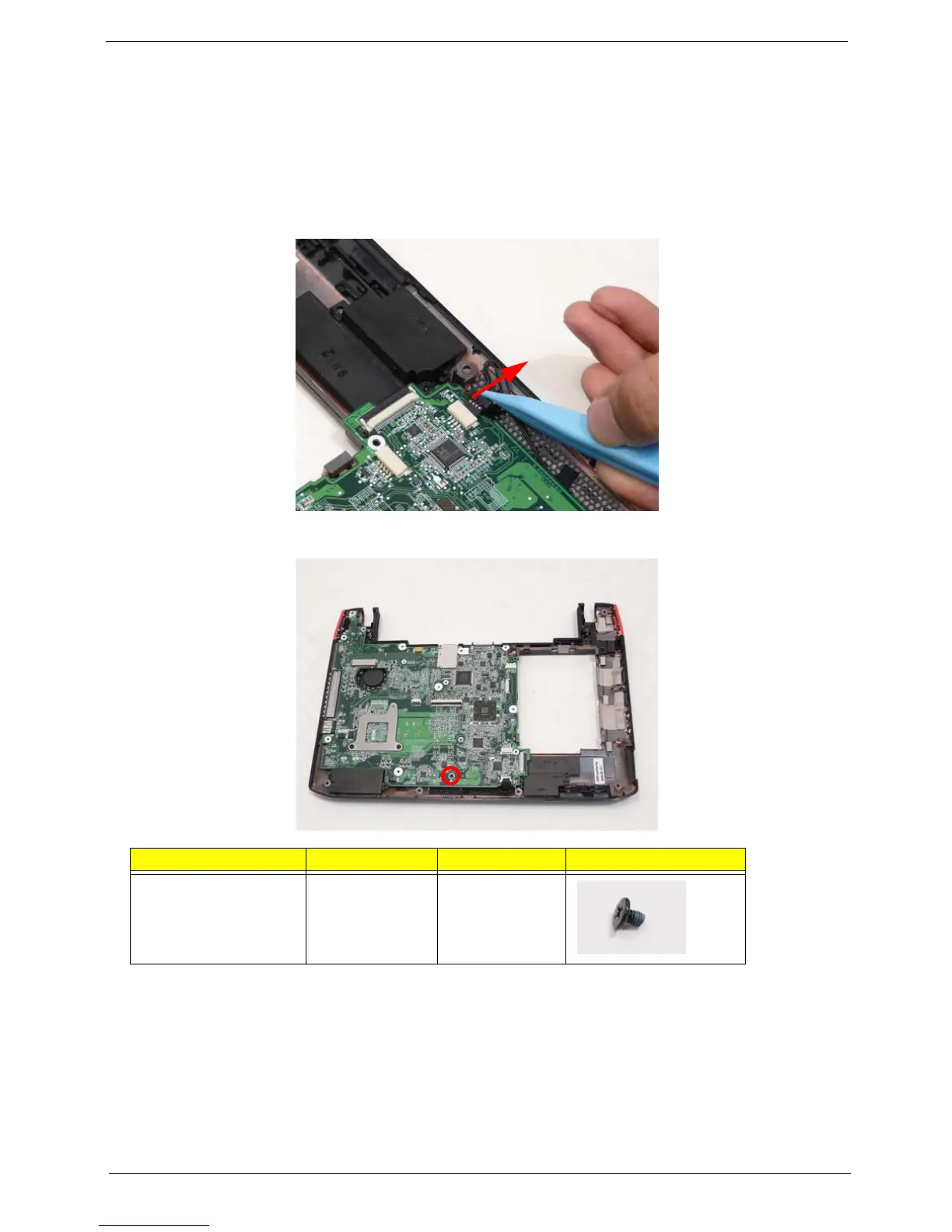

Removing the Mainboard
1. See “Removing the Upper Cover” on page 58.
2. See “Removing the Bluetooth Module” on page 65.
3. See “Removing the I/O Board” on page 66.
4. See “Removing the LCD Module” on page 69.
5. Disconnect the speaker connector.
6. Remove the one (1) screw in the main board.
Step Screw Quantity Screw Type.
Main Board
Disassembly
2*3 1

Acer Ferrari One 200 Specifications

General

Processor family	AMD Athlon
Processor frequency	1.2 GHz
Processor manufacturer	AMD
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
HDD speed	5400 RPM
HDD capacity	320 GB
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD
Display diagonal	11.6 \
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Display number of colors	16.78 million colors
Bluetooth version	2.1+EDR
Networking features	Gigabit Ethernet, WLAN
Mobile network generation	3G
Graphics card	Radeon HD 3200
Audio system	HD Audio
Number of built-in speakers	2
Operating system installed	Windows 7 Home Premium
Cable lock slot type	Kensington
Product type	Netbook
Product color	Red
Charging port type	DC-in jack
USB 2.0 ports quantity	3
Battery capacity	5600 mAh
Battery life (max)	4 h
Number of battery cells	6
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V

Weight and Dimensions

Depth	204 mm
Width	285 mm
Weight	1500 g
Height (rear)	30 mm
Height (front)	24 mm
