Acer G195WL - Connector Pin Assignment

EN-9
PIN NO.DESCRIPTIONPIN NO.DESCRIPTION
1.Red9.+5V
2.Green10.Logic Ground
3.Blue11.Monitor Ground
4.Monitor Ground12.DDC-Serial Data
5.Self Test13.H-Sync
6.R-Ground14.V-Sync
7.G-Ground15.DDC-Serial Clock
8.B-Ground

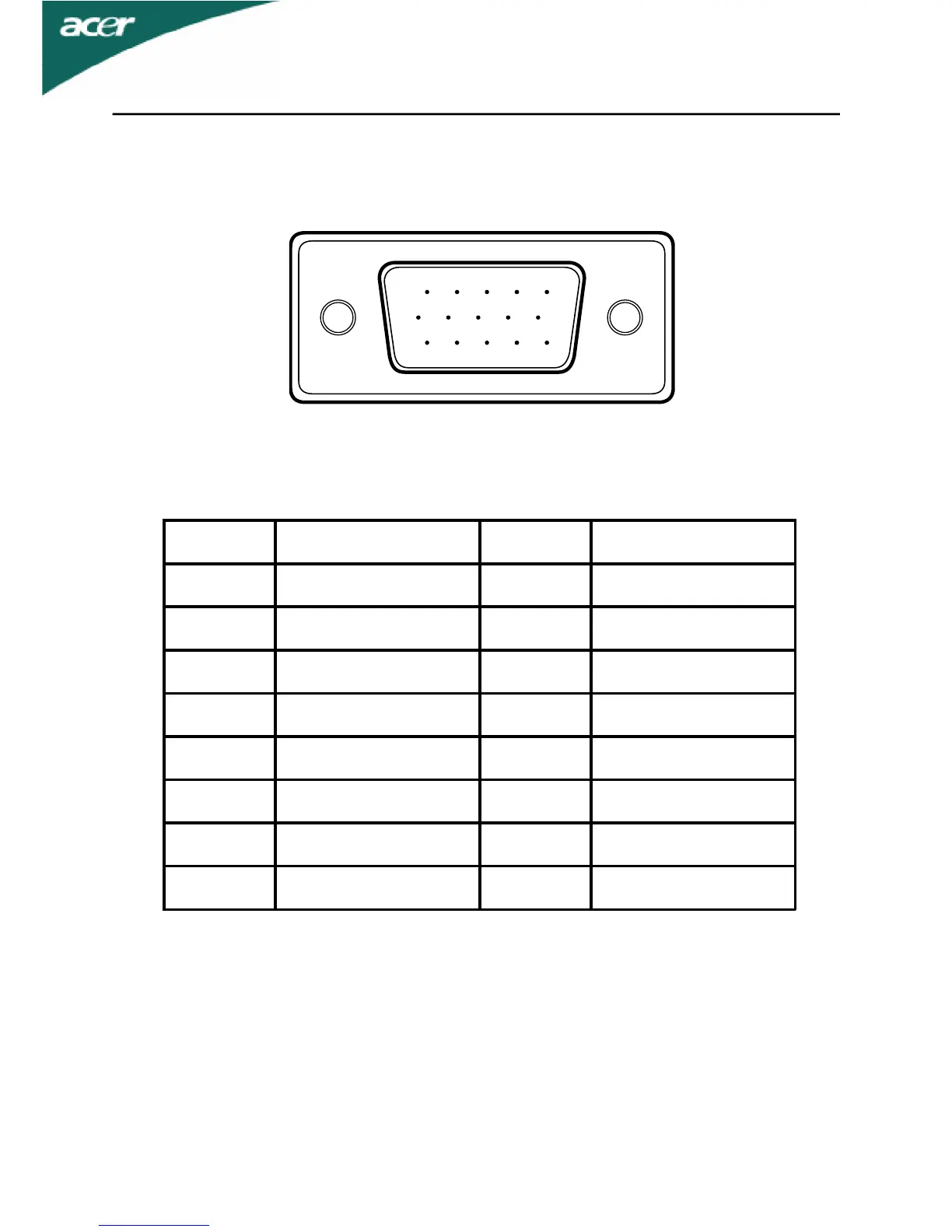

CONNECTOR PIN ASSIGNMENT
15-Pin Color Display Signal Cable
1
6
11
5
10
15
