• 1080p series (H6517BD/E145D/HE-801J)
If the projector is 3 m from the screen, good image quality is possible for image
sizes between 84" and 92".

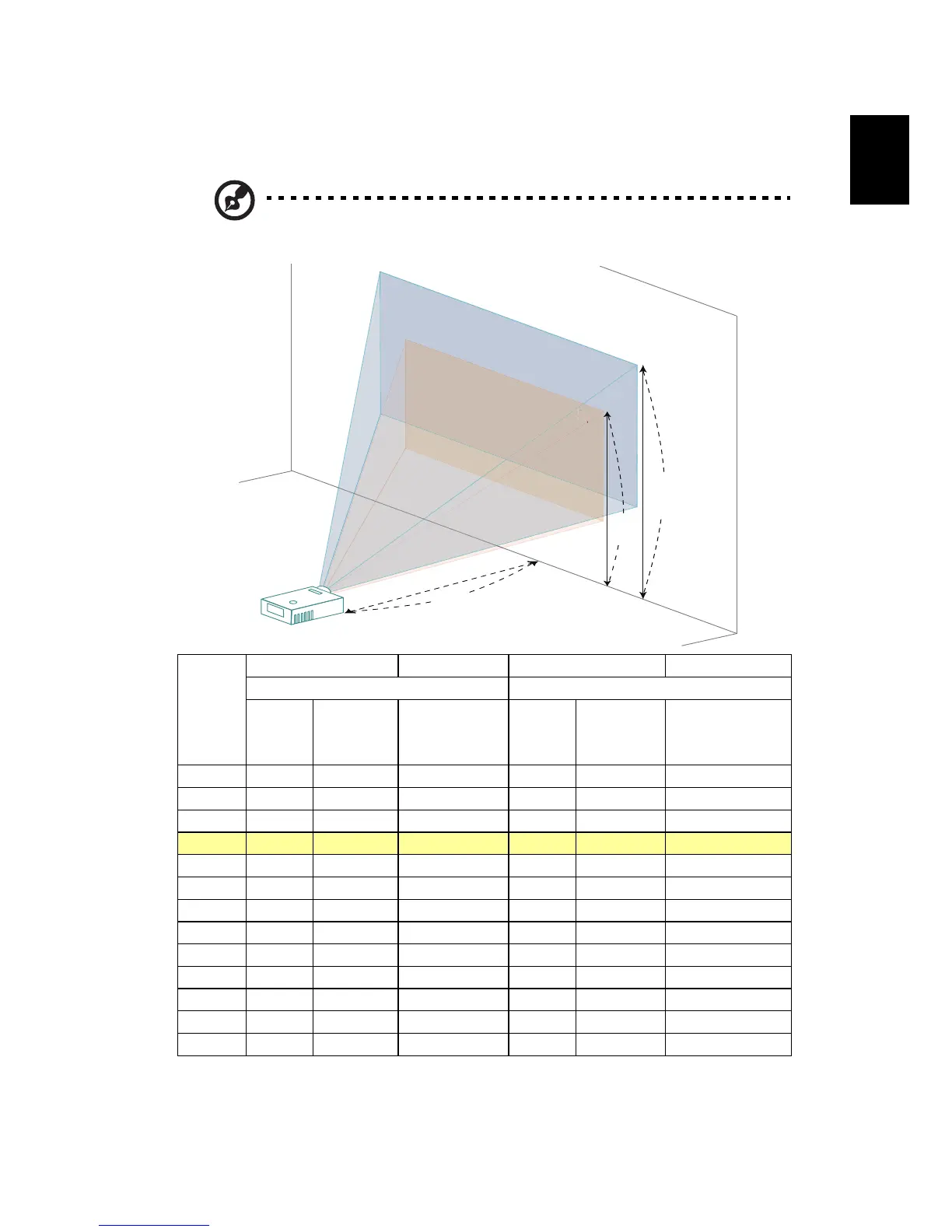

Note: Remind as below figure, the space of 132 cm height is
required when located at 3 m distance.
Desired
Distance
(m)
<A>
Screen size
Top
Screen size
Top
(Min zoom) (Max zoom)
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to
top of image
(cm)
<C>
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to top
of image (cm)
<C>
1.5 42 93 x 52 60 46 101 x 57 66
2 56 123 x 69 81 61 135 x 76 88
2.5 70 154 x 87 101 76 169 x 95 110
3 84 185 x 104 121 92 203 x 114 132
3.5 98 216 x 122 141 107 236 x 133 154
4 112 247 x 139 161 122 270 x 152 176
4.5 125 278 x 156 181 137 304 x 171 198
5 139 309 x 174 201 153 338 x 190 220
6 167 370 x 208 242 183 405 x 228 265
7 195 432 x 243 282 214 473 x 266 309
8 223 494 x 278 322 244 541 x 304 353
9 251 556 x 313 363 275 608 x 342 397
10 279 617 x 347 403 305 676 x 380 441
Zoom Ratio: 1.1x
92"
84"
84"
4
A
C
B
Height: 132 cm
from base to top
of image
Height:
121 cm
3 m
Desired Distance
