How to get a preferred image size by adjusting
distance and zoom

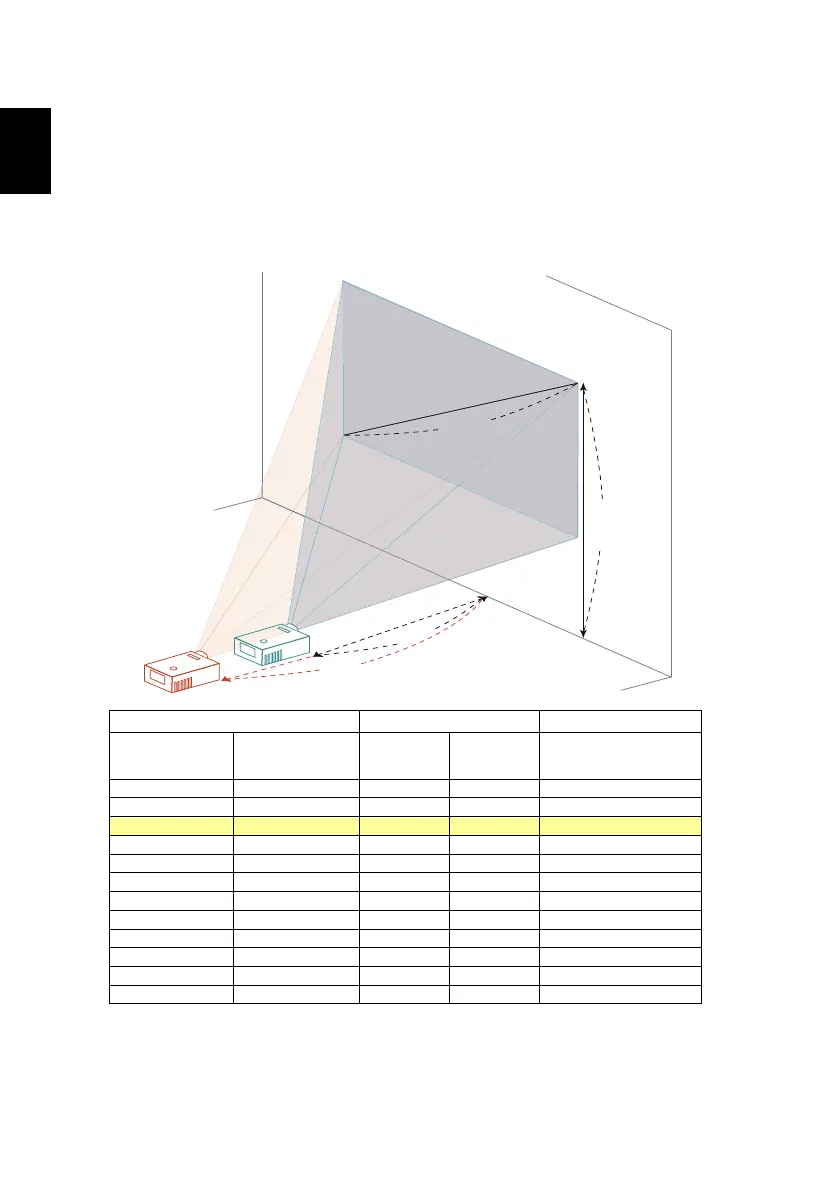

The table below shows how to achieve a desired image size by adjusting either
the position or the zoom ring.
• 1080p series with a zoom ratio of 1.1x and a throw ratio of 1.47~1.62:1
To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m
from the screen.
Desired Image Size Distance (m) Top (cm)
Diagonal (inch)
<A>
W (cm) x H (cm)
Max zoom
<B>
Min zoom
<C>
From base to top of
<D>
28 62 x 35 1.0 40
50 111 x 62 1.6 1.8 72
60 133 x 75 2.0 2.2 87
70 155 x 87 2.3 2.5 101
80 177 x 100 2.6 2.9 116
90 199 x 112 2.9 3.2 130
100 221 x 125 3.3 3.6 144
120 266 x 149 3.9 4.3 173
150 332 x 187 4.9 5.4 217
200 443 x 249 6.5 7.2 289
250 553 x 311 8.1 9.0 361
300 664 x 374 9.76 433
Zoom Ratio: 1.1x
A
C
D
B
Desired Distance
2.2 m
2.0 m
Height: 87 cm
from base to top of
60"
Desired
image size
