6
English

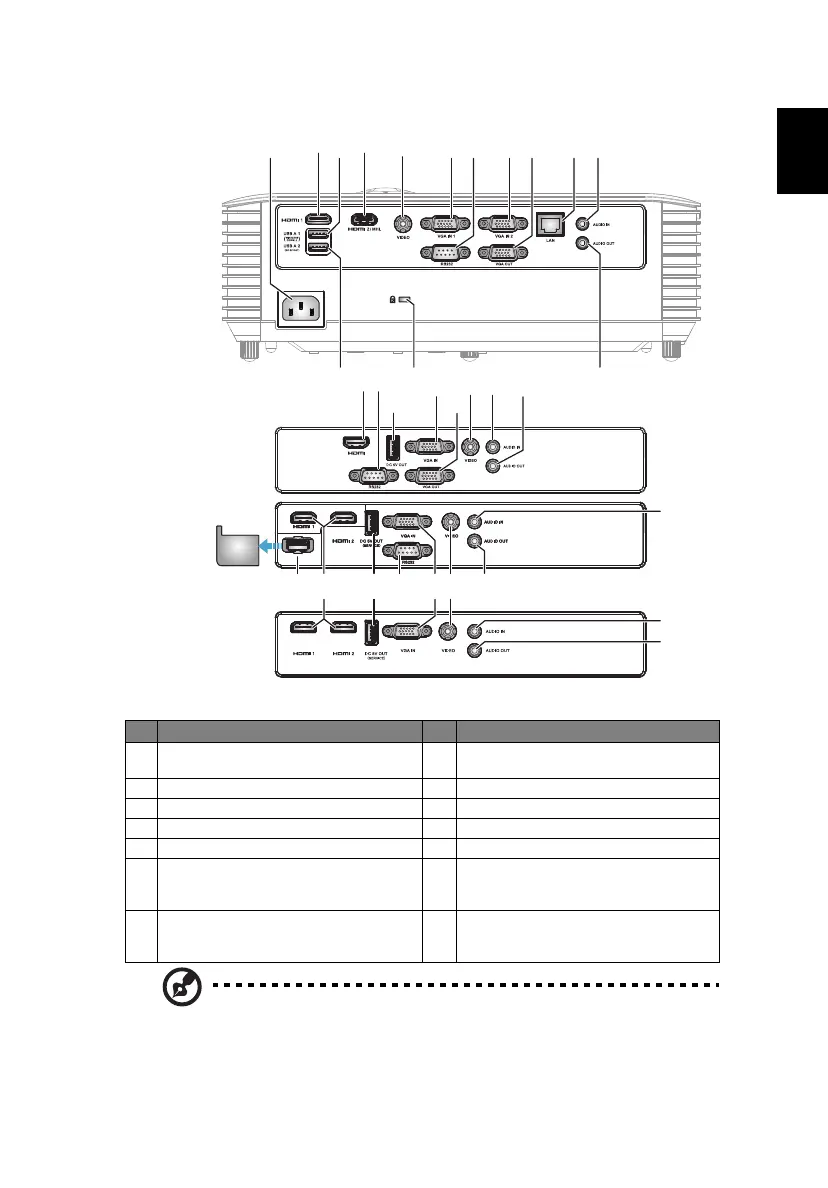

Rear side (Type B)
Note: Functions vary depending on model definition.
# Description # Description
1 Power socket
8 Monitor loop-through output
connector (for VGA IN 1, VGA IN only)
2 HDMI connector 9 LAN (RJ45 Port for 10/100M Ethernet)
3 USB connector (for wifi dongle) 10 Audio in connector
4 HDMI (MHL) connector 11 Audio out connector
5 Composite video input connector 12 Kensington™ lock port
6
PC analog signal/HDTV/component
video input connector
13 USB connector (device charge and USB
displays and support mouse page up/
down and firmware upgrade functions)
7
RS232 connector
14 5V DC output connector (device charge
and support mouse page up/down and
firmware upgrade functions)
3 5 6
6
7 8
8
9 10
11
1 4
1112
62
10
10
11
11
13
2
2
3 5714
7
6
5 10
14
Remove
WIRELESS KIT
port label
