• H6815/V6815/E8615/E8615C/ET-4K15/HT-4K15/GM834/HV834/VH-735/
TH-735/D4K1735/D4K1732 series

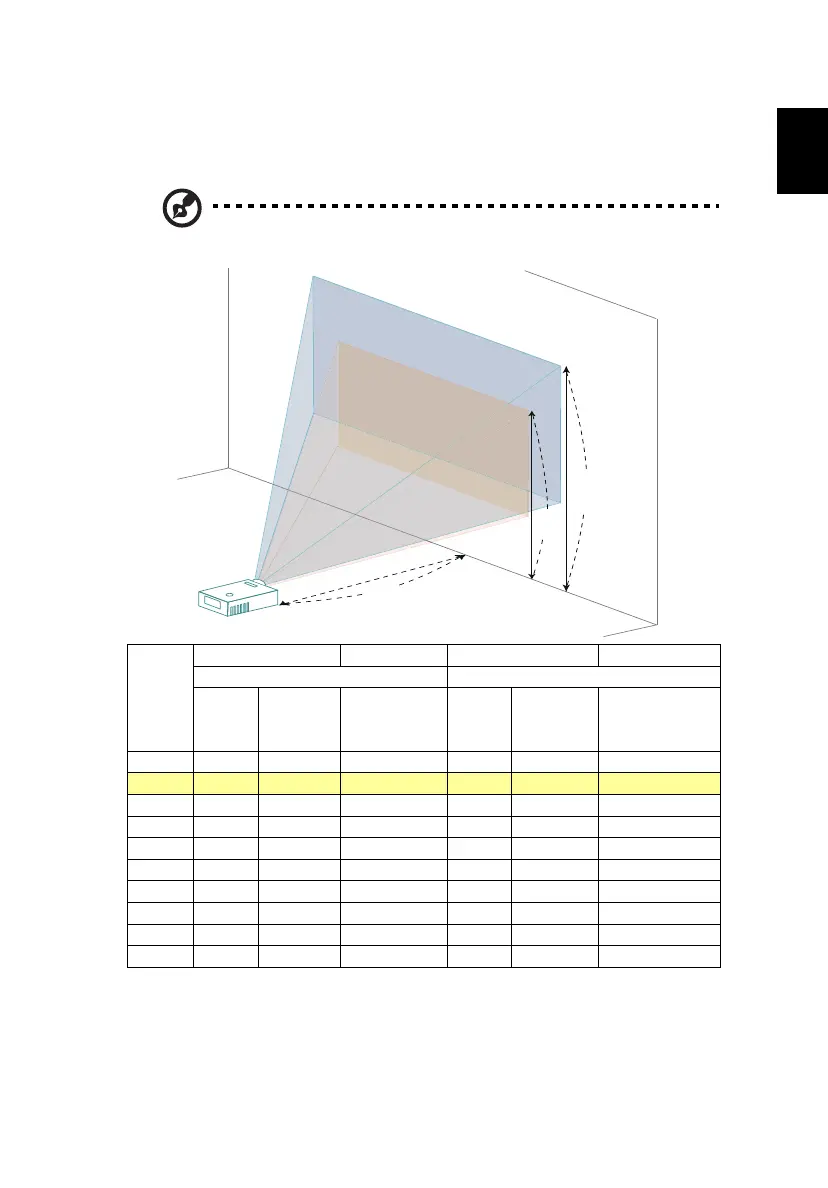

If the projector is 2 m from the screen, good image quality is possible for image
sizes between 57" and 75".
Note: Remind as below figure, the space of 98 cm height is
required when located at 2 m distance.
Desired
Distance
(m)
<A>
Screen size
Top
Screen size
Top
(Min zoom) (Max zoom)
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to
top of image
(cm)
<C>
Diagonal
(inch)
<B>
W (cm) x H
(cm)
From base to top
of image (cm)
<C>
1 28 63 x 35 37 37 83 x 46 49
2 57 126 x 71 74 75 165 x 93 98
2.5 71 157 x 88 93 93 207 x 116 122
3 85 189 x 106 111 112 248 x 139 146
3.5 99 220 x 124 130 131 289 x 163 171
4 114 252 x 142 149 149 331 x 186 195
5 142 314 x 177 186 187 413 x 232 244
6 170 377 x 212 223 224 496 x 279 293
7 199 440 x 248 260 261 579 x 325 342
8.04 228 506 x 284 299 300 664 x 374 392
Zoom Ratio: 1.3x
75"
57"
57"
7
A
C
B
Height: 98 cm
from base to top of
Height:
74 cm
2 m
Desired Distance
