Note: The maximum shift of vertical (horizontal) image adjustment can be

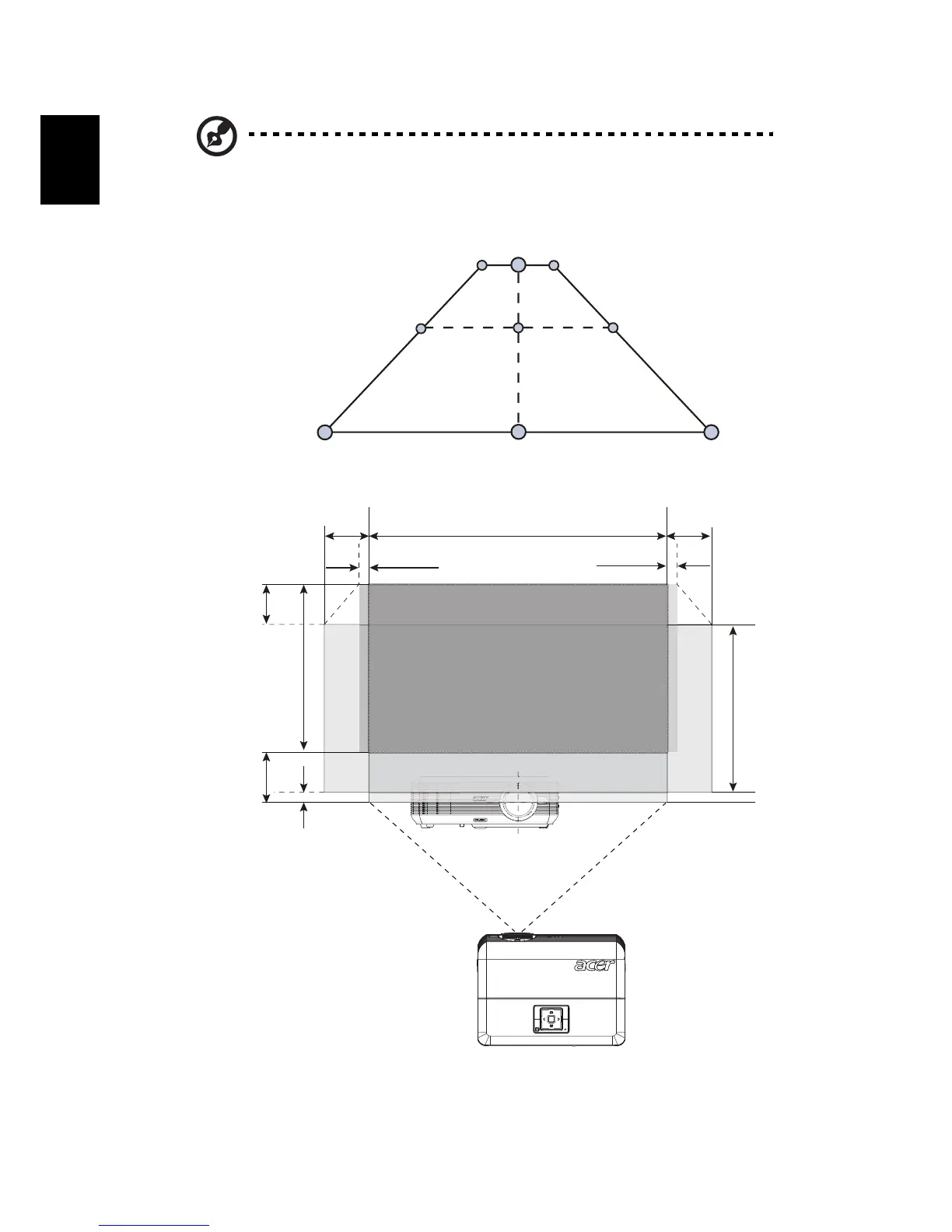

limited by horizontal (vertical) image position. Please refer below diagram.
H
H x 30%
V
H x 30%
V
V x 25%
H x 5%
H x 5%
RESYNC
RESYNC
LAMP
LAMP
TEMP
TEMP
SOURCE
SOURCE
MENU
MENU
130%(V), 0%(H)
-30%(H)
30%(H)
105%(V)
-5%(H) 5%(H)
120%(V)
-15%(H)
15%(H)
Offset max=
V x 30%
Offset min= V x 5%
