Acer PD1325WG Series - Projector Overview; Projector Outlook

3
English

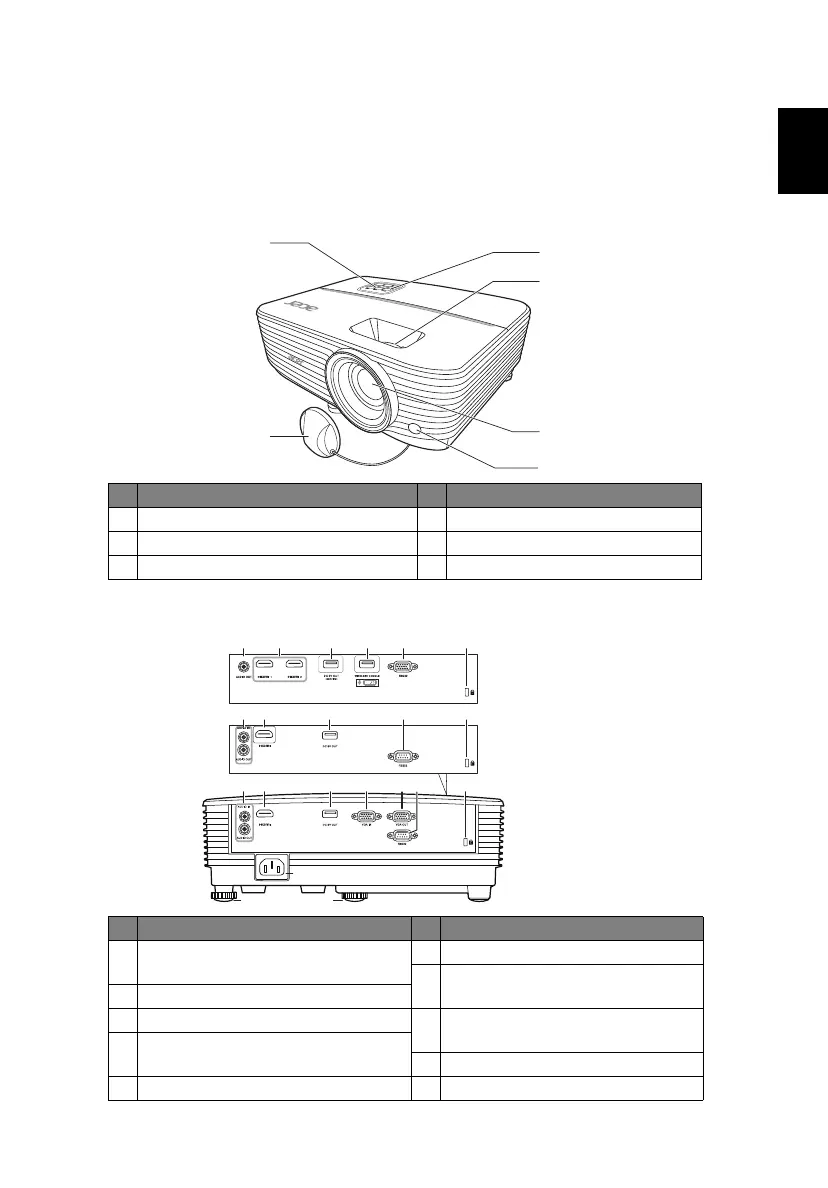

Projector Overview
Projector Outlook
Front/upper side
Rear side
# Description # Description
1 Control panel 4 Zoom ring and Focus ring
2 Lens cap 5 Projection lens
3 Power key and Power indicator LED 6 Remote control receiver
# Description # Description
1 Audio input connector
Audio output connector
6 Kensington™ lock port
7 Analog RGB signal/HDTV/
component video input connector2 HDMI connector
3 USB A connector (DC 5V output) 8 Monitor loop-through output
connector
4 USB A connector (for wireless
dongle) 9 Power socket
5 RS232 connector 10 Tilt adjusting wheel
1
2
4
5
3
6
1 237 85
10
9
10
1 23 5 6
1 234 5 6
6
Note: Connector
interface is subject to
model's specifications.
