Chapter 3 36

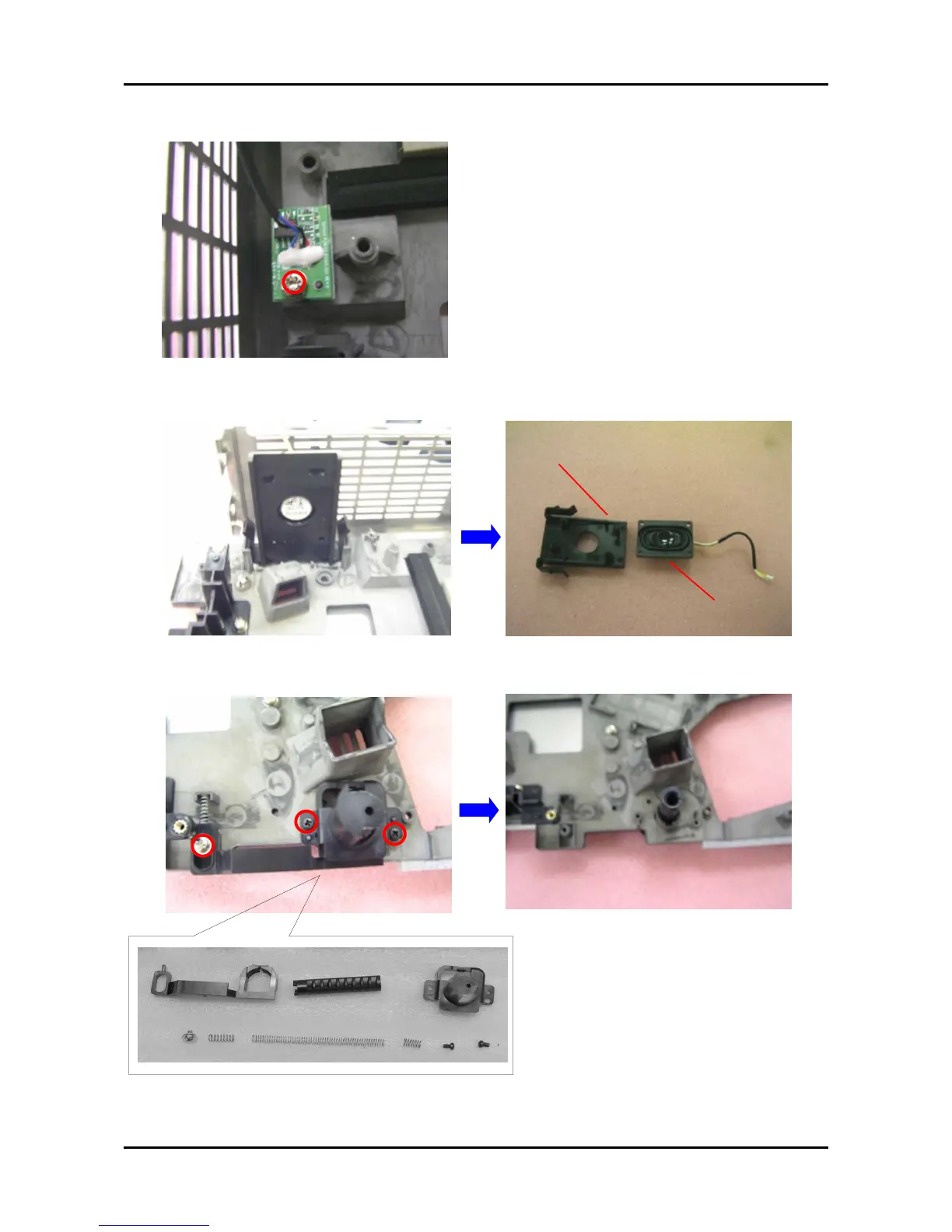

4. Unscrew one screw to remove Thermal Sensor Board.
5. Take off Speaker and Speaker Holder.
Speaker Holder
Speaker
6. Unscrew 3 screws to remove Elevator Module.
Elevator Module
a. b. c.
d. e. f. g. h.
a. ELEVATOR LEVEL PC+ABS
b. ELEVATOR GEAR BAR NORYL
c. ELEVATOR BASE HOLDER NORYL
d. SCREW PAN MECH M3*5*D8 Ni
e. ELEVATOR SPRING SUS 304 ¡í0.4/OD4.4/L12
f. ELEVATOR SPRING 0.D:£p4.5 W.D:£p0.3 L:65mm
g. ELEVATOR SPRING SUS304 £X0.4/0D4.74/L8.3
h. SCREW PAN MECH M2.6*5 BLACK NYLOK *2
