Acer PD726 - Remove Bottom Cover

31 Chapter 3
No Procedure Photo

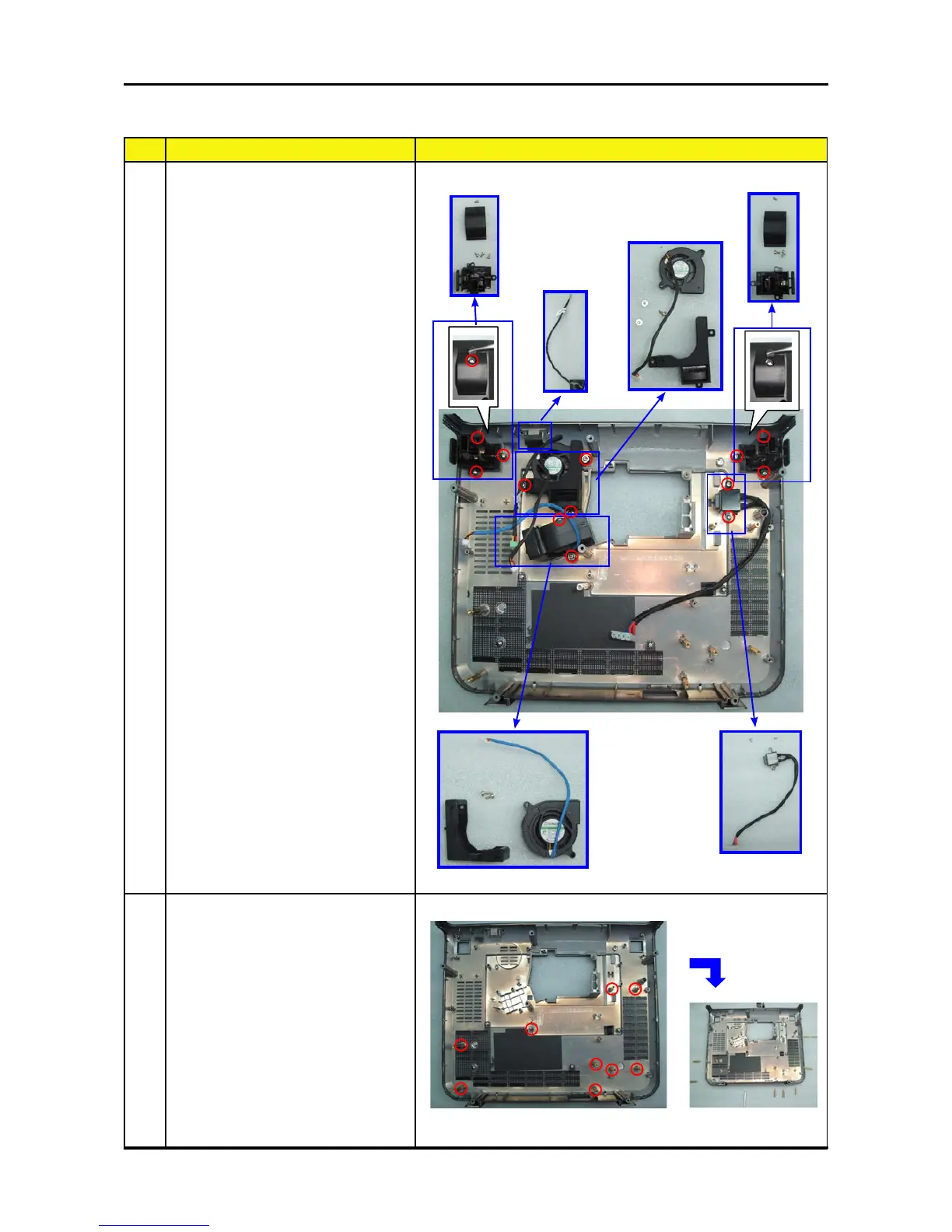

1 (1) Unscrew 4 screws to
remove the Elevator (Left).
(2) Unscrew 4 screws to
remove the Elevator (Right).
(3) Tear off the Mylar and
remove the Front IR Receiver
directly.
(4) Unscrew 3 screws to
remove the Fan 1.
(5) Unscrew 2 screws to
remove the Fan 2.
(6) Unscrew 2 screws to
remove the Interlock Switch.
2 Unscrew 9 hex spacers
and separate them from the
Bottom Cover.
8. Remove Bottom Cover
Elevator (Left)
Elevator (Right)
Front IR Receiver
Fan 1
Fan 2
Interlock Switch
