Acer Predator PHN16-71 - Exploded Diagrams

1-42 FRU (Field Replaceable Unit) List
Exploded Diagrams 0

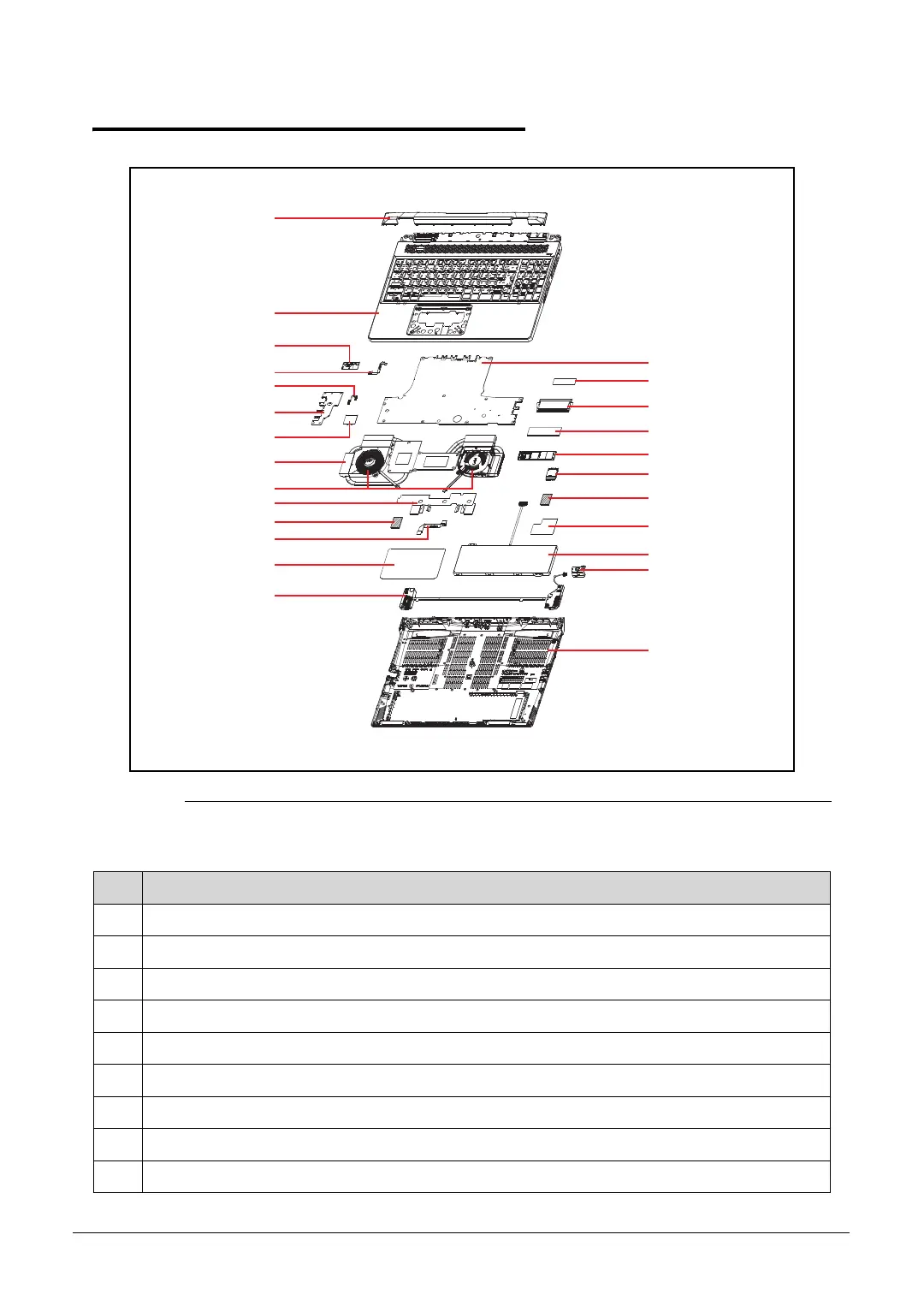

Figure 1-52. System Exploded Diagram
Table 1-2. System Exploded Diagram
No. Description
1 DECO cap
2 Top assembly
3 Switch board (TURBO key board)
4 Switch board FFC
5 USB board power cable
6 USB board
7 USB board FPC
8 Heatsink
9 Fan for CPU and GPU
11
12
13
14
15
10
20
21
22
23
25
1
2
4
5
3
6
7
8
9
16
18
19
24
17
