Acer Predator PHN16-71 - Base Cover Removal

Disassembly Procedures 1-7
Base Cover Removal 0

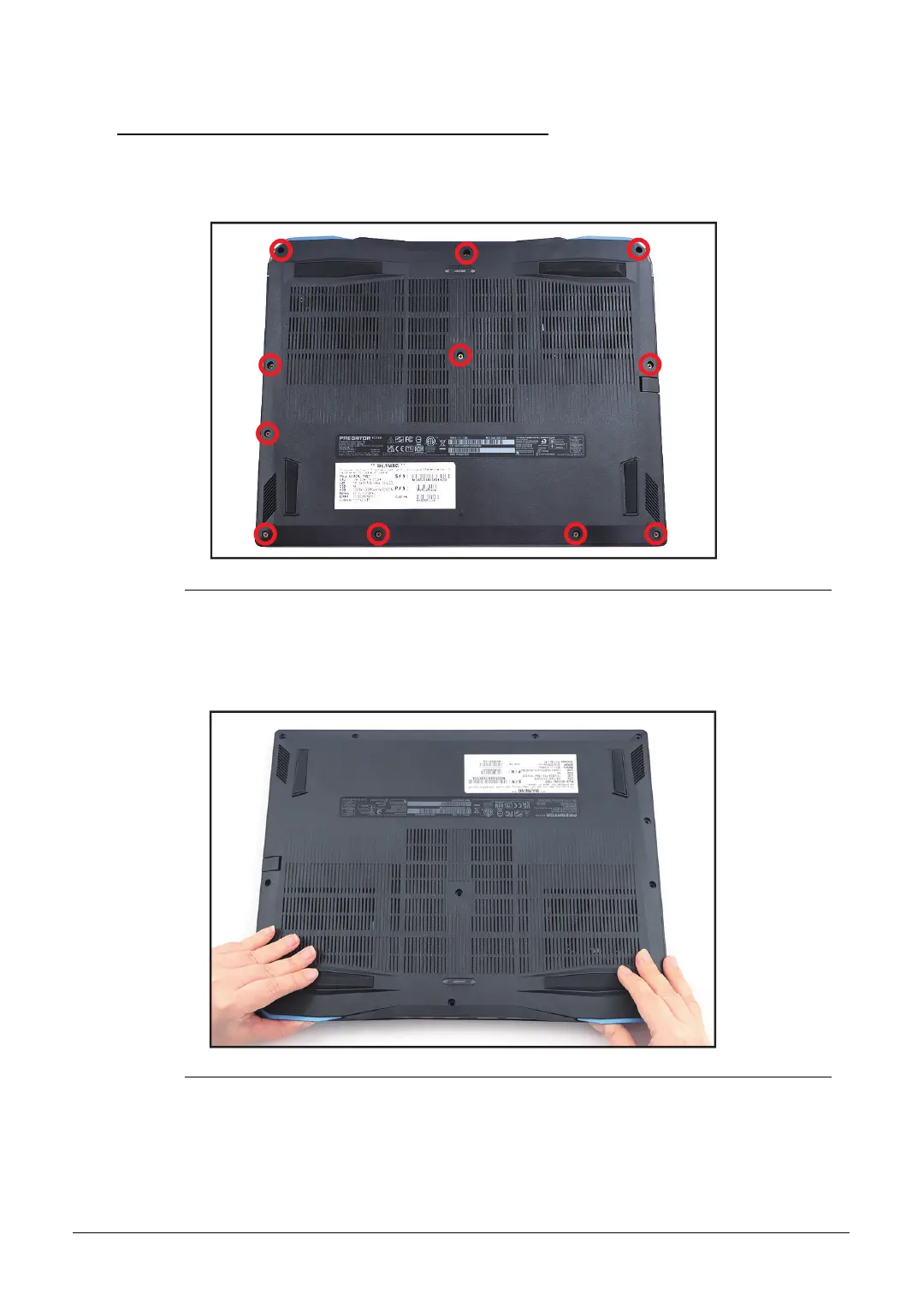

1. Remove eleven (11) screws from the base cover (Figure 1-3).
Figure 1-3. Base Cover Removal
2. Carefully pry up the base cover starting from the upper left and right sides to release
the latches (Figure 1-4).
Figure 1-4. Base Cover Removal
