Acer T232HL - Page 7

7

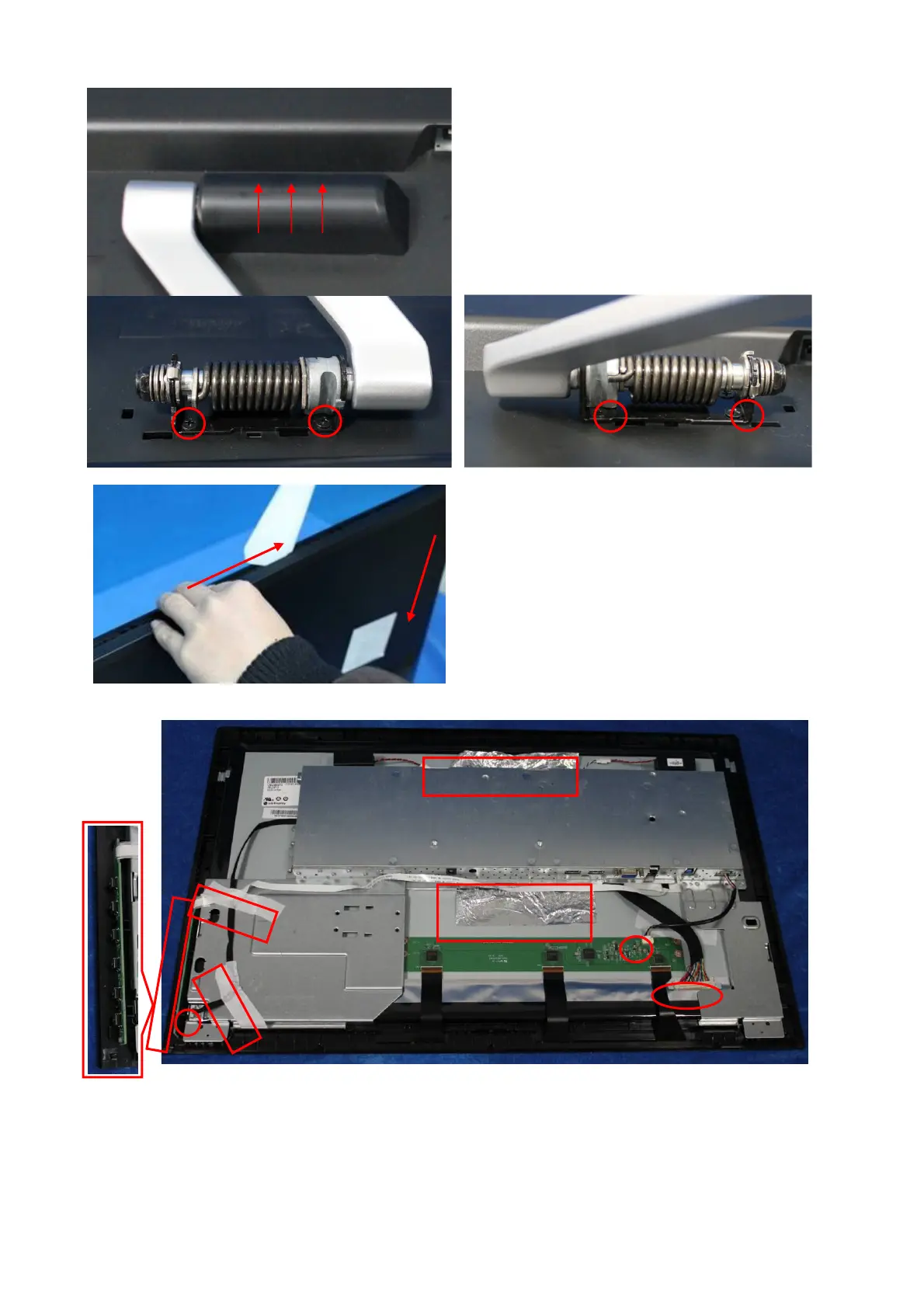

S2. Remove the stand ASS’Y.
S3. Remove the rear cover. Use a tool (like picture using) to open all latches. (Be careful the position of the key board.)
S4. Disconnect the LVDS cable (main board to panel), lamp power cable (power board to panel), and tear up all tapes.
Pull out the key board from the slot.
Pull out the hinge cover
