Acer TMP214-52 - WLAN Module Removal (HDD SKU Only)

1-8 Disassembly Procedures
WLAN Module Removal (HDD SKU Only) 0
Prerequisite:
Battery Pack Removal
1. Find the WLAN module (A) on the top assembly (Figure 1-9).

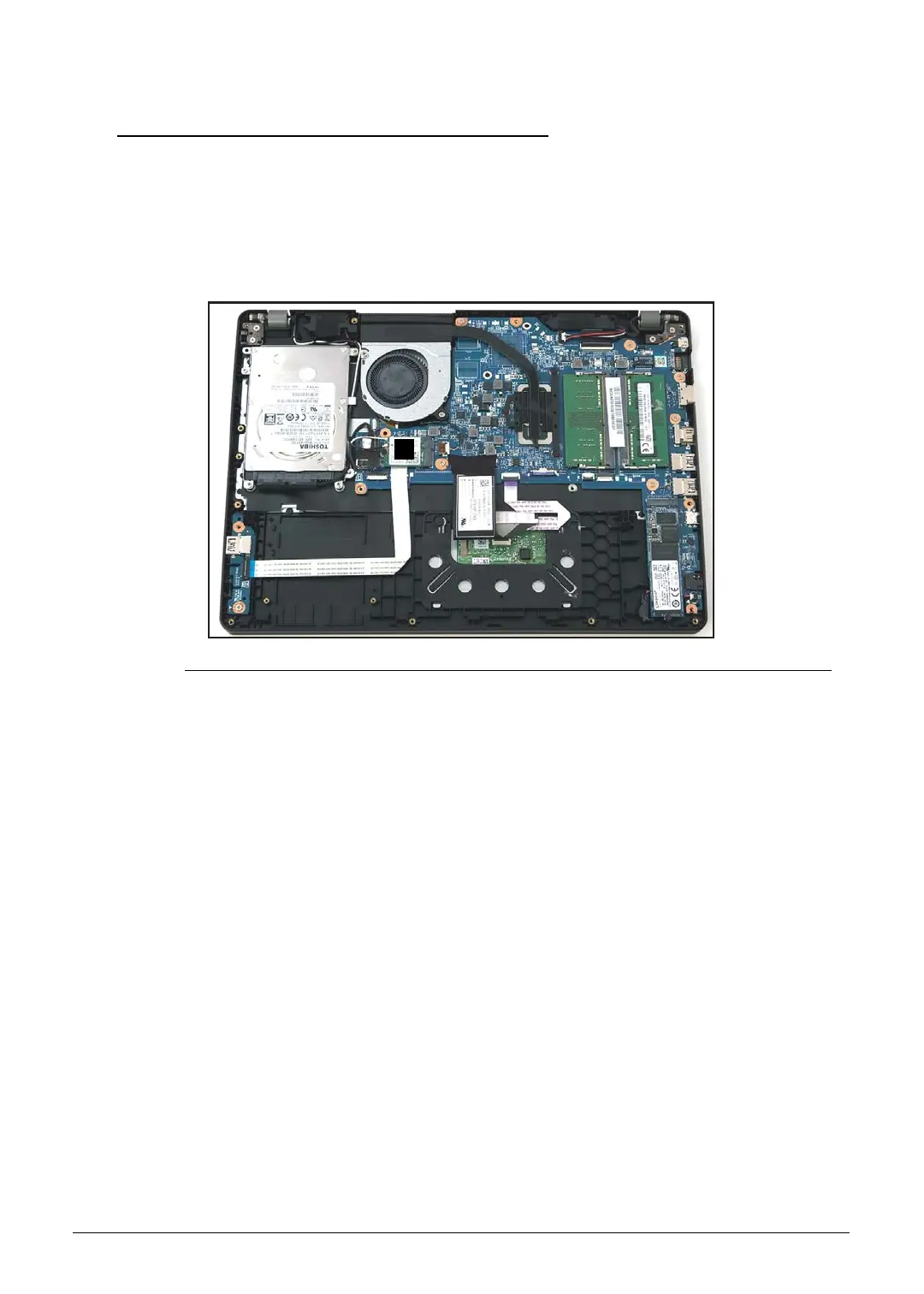

Figure 1-9. WLAN Module Location
2. Disconnect the AUX antenna cable (white-color) from the WLAN AUX pin
(Figure 1-10).
3. Disconnect the MAIN antenna cable (black-color) from the WLAN MAIN pin
(Figure 1-10).
4. Unroute the WLAN antennas cables from the guides on the top assembly
(Figure 1-10).
A
