1-24 Disassembly Procedures
4. Remove four (4) screws securing the LCD module in place (Figure 1-30).

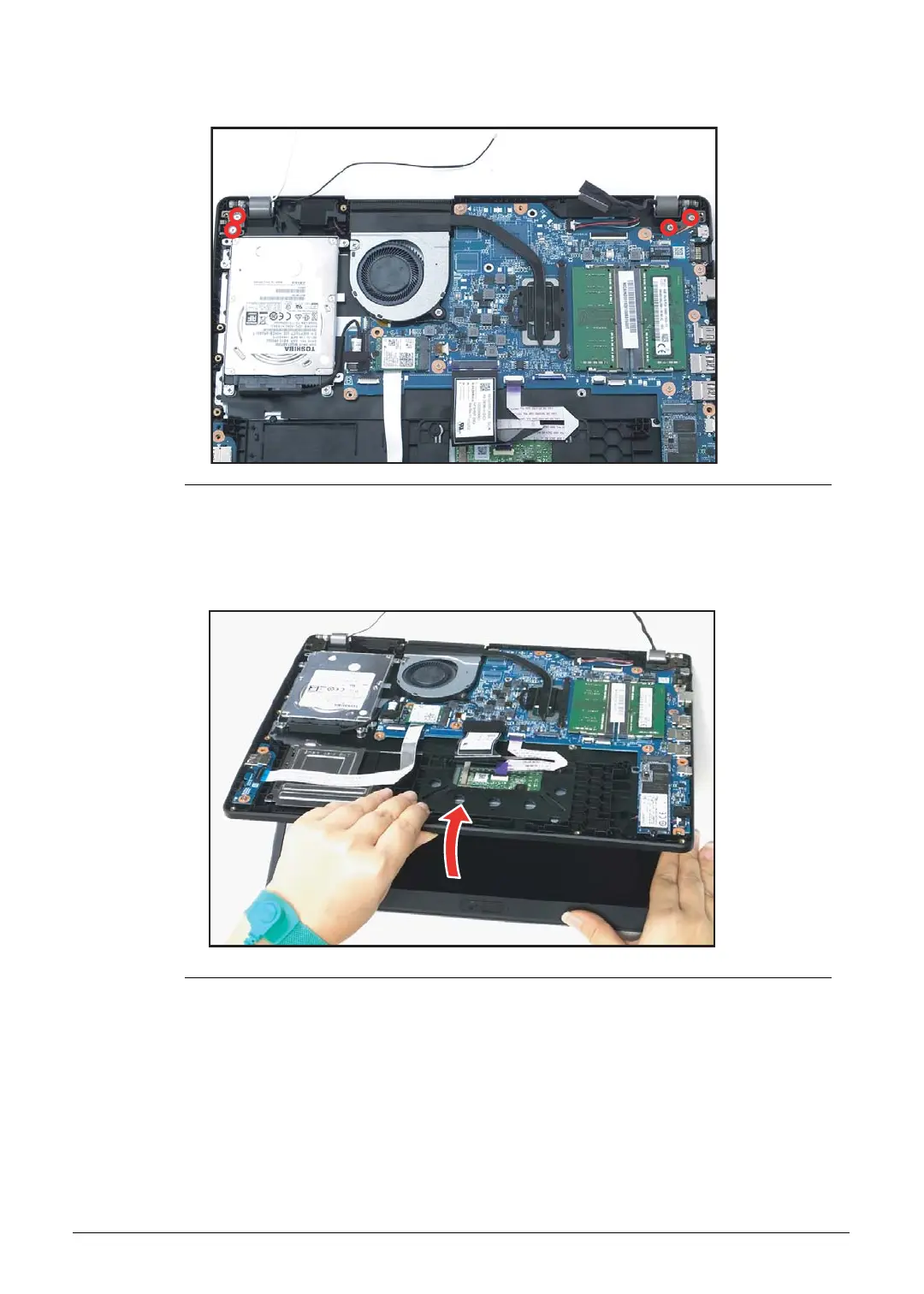

Figure 1-30. LCD Module Removal
5. Place the device on a flat surface, top assembly facing up (Figure 1-31).
6. Lift the top assembly until it is fully open (Figure 1-31).
Figure 1-31. LCD Module Removal
