Disassembly Procedures 1-25
7. Close the top assembly and lift both LCD hinges until they are fully extended
(Figure 1-32).

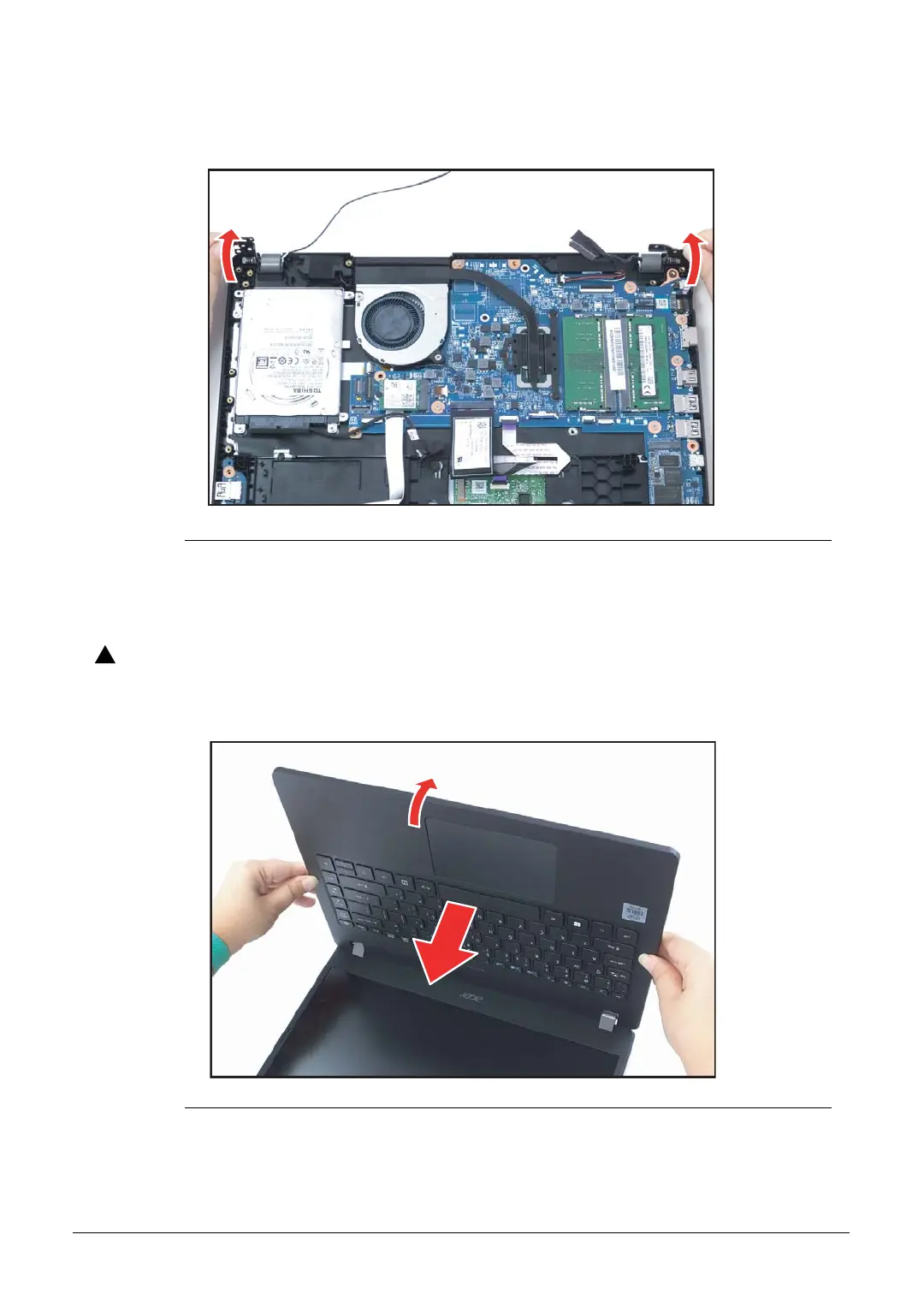

Figure 1-32. LCD Module Removal
8. Open the top assembly again, and then pull it backwards to remove the top assembly
away from the LCD module (Figure 1-33).
Make sure all cables and antennas are moved away from the device to avoid
damage during removal.
Figure 1-33. LCD Module Removal
