4. Disconnect the LTE antennas cables (B) from the LTE module connectors (Figure 1-36).
5. Disconnect the WLAN antennas cables (C) from the WLAN module connectors
(Figure 1-36).
6. Unroute the LTE and WLAN antennas cables from the guides on the top assembly
(Figure 1-36).

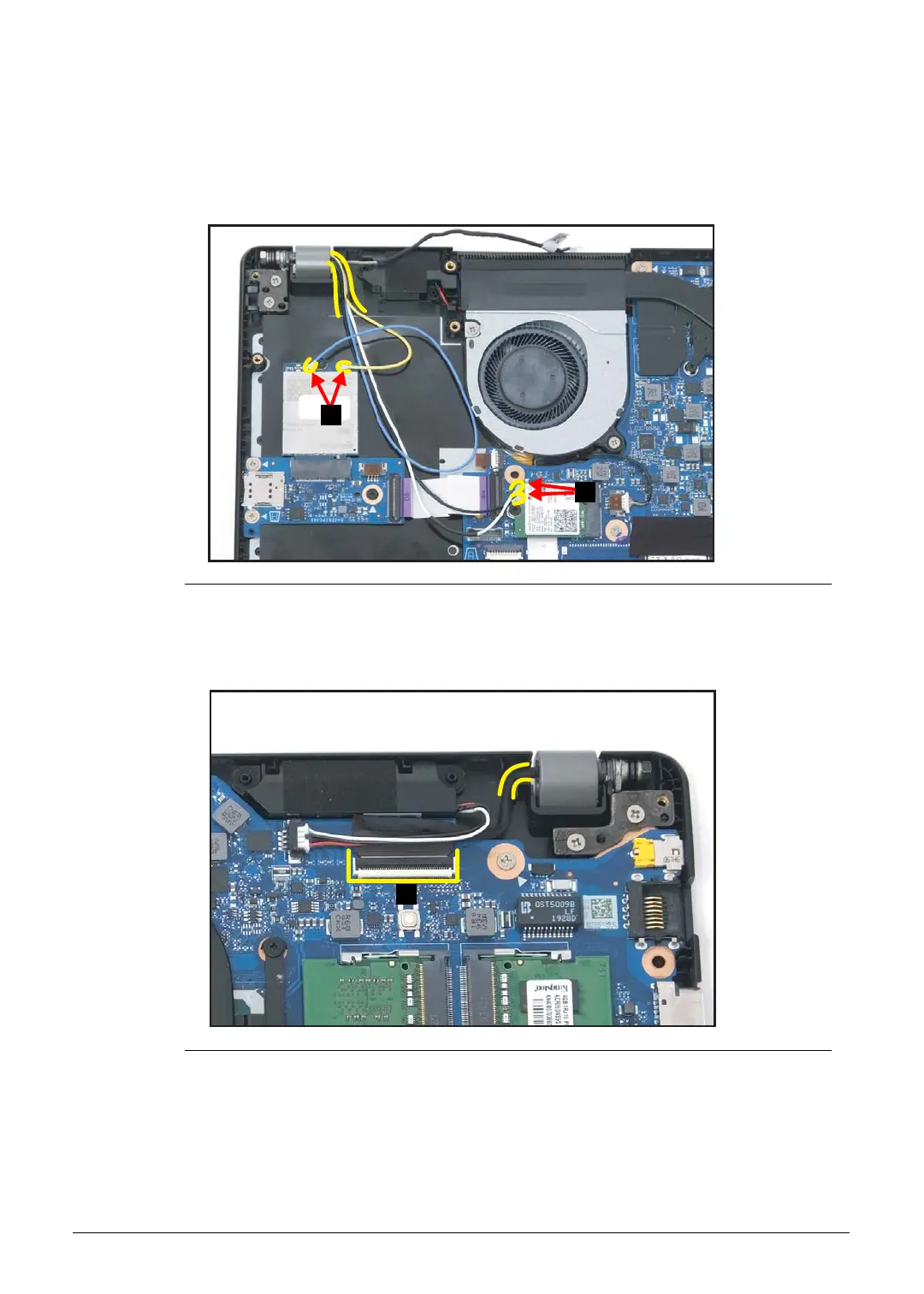

Figure 1-36. LCD Module Removal
7. Disconnect the eDP cable from the mainboard connector (D) (Figure 1-37).
8. Unroute the eDP cable from the guide on the top assembly (Figure 1-37).
Figure 1-37. LCD Module Removal
C
B
D
