Disassembly Procedures 1-29
12. Close the top assembly and lift both LCD hinges until they are fully extended
(Figure 1-40).

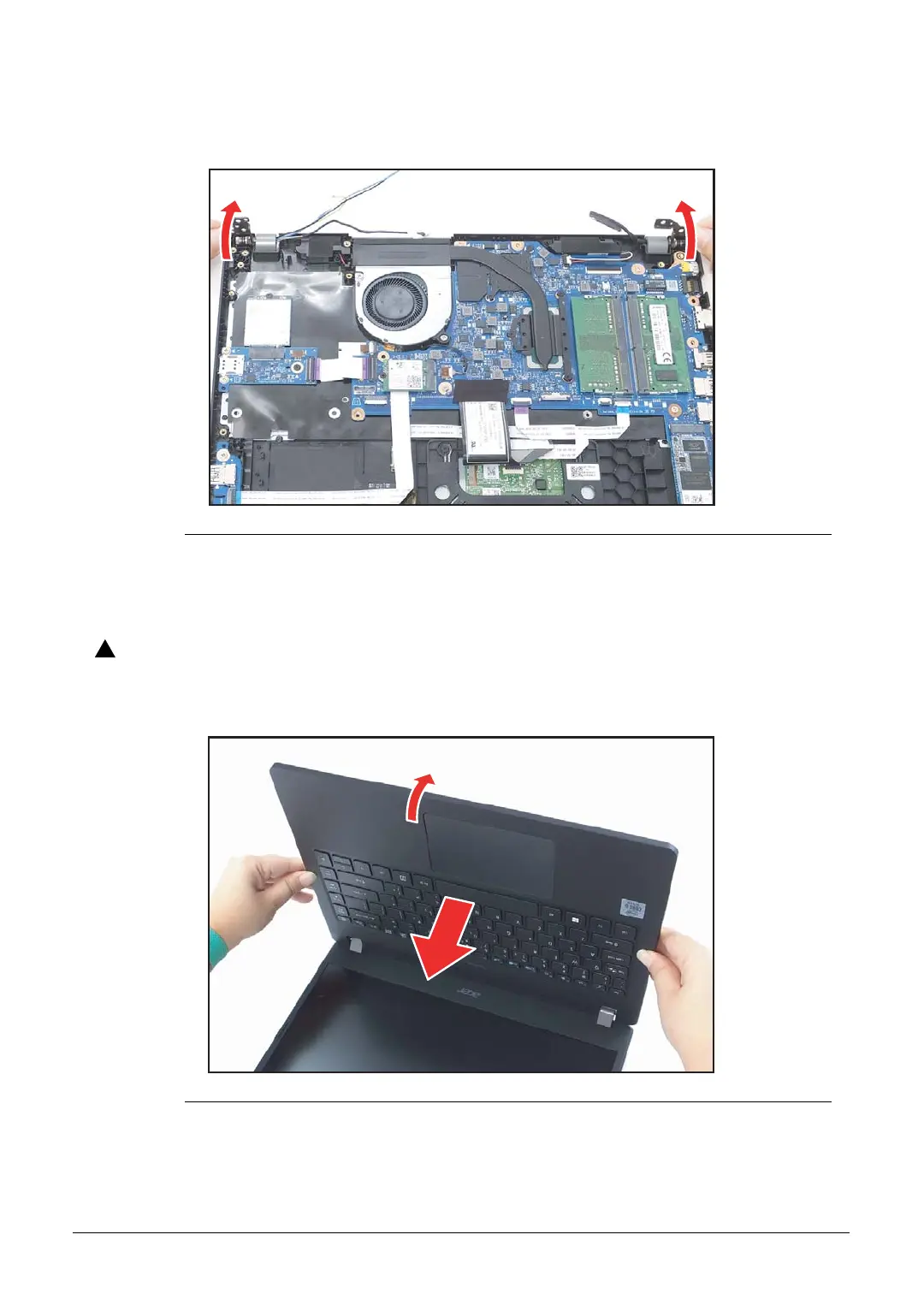

Figure 1-40. LCD Module Removal
13. Open the top assembly again, and then pull it backwards to remove the top assembly
away from the LCD module (Figure 1-41).
Make sure all cables and antennas are moved away from the device to avoid
damage during removal.
Figure 1-41. LCD Module Removal
