Acer TMP214-52 - USB Board Removal

1-30 Disassembly Procedures
USB Board Removal 0
Prerequisite:
WLAN Module Removal (HDD SKU Only)
1. Disconnect the USB board FFC (A) from the mainboard and USB board connectors
(Figure 1-42).
2. Remove two (2) screws securing the USB board in place (Figure 1-42).

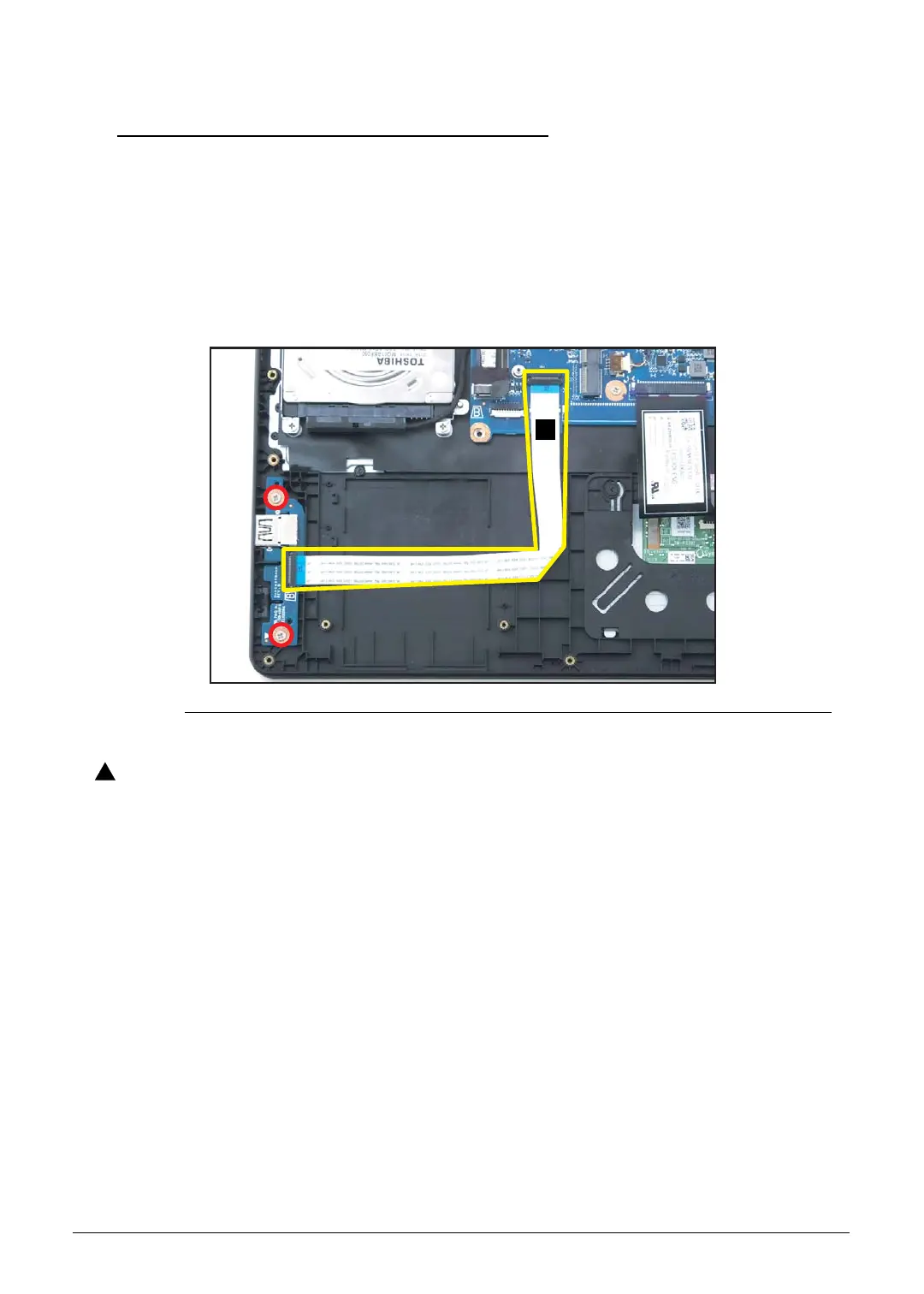

Figure 1-42. USB Board Removal
CAUTION:
!
USB board FFC (Flexible Flat Circuit) can be damaged if removed while the
mainboard connector and the USB board connector are locked.
A
