Acer TravelMate 5760 Service Guide

3-52 Machine Maintenance Procedures
4. Starting from the bottom-center of bezel, pry bezel up from the panel. Move along the
edge to top of bezel until bezel is completely removed. (Figure 3-56)

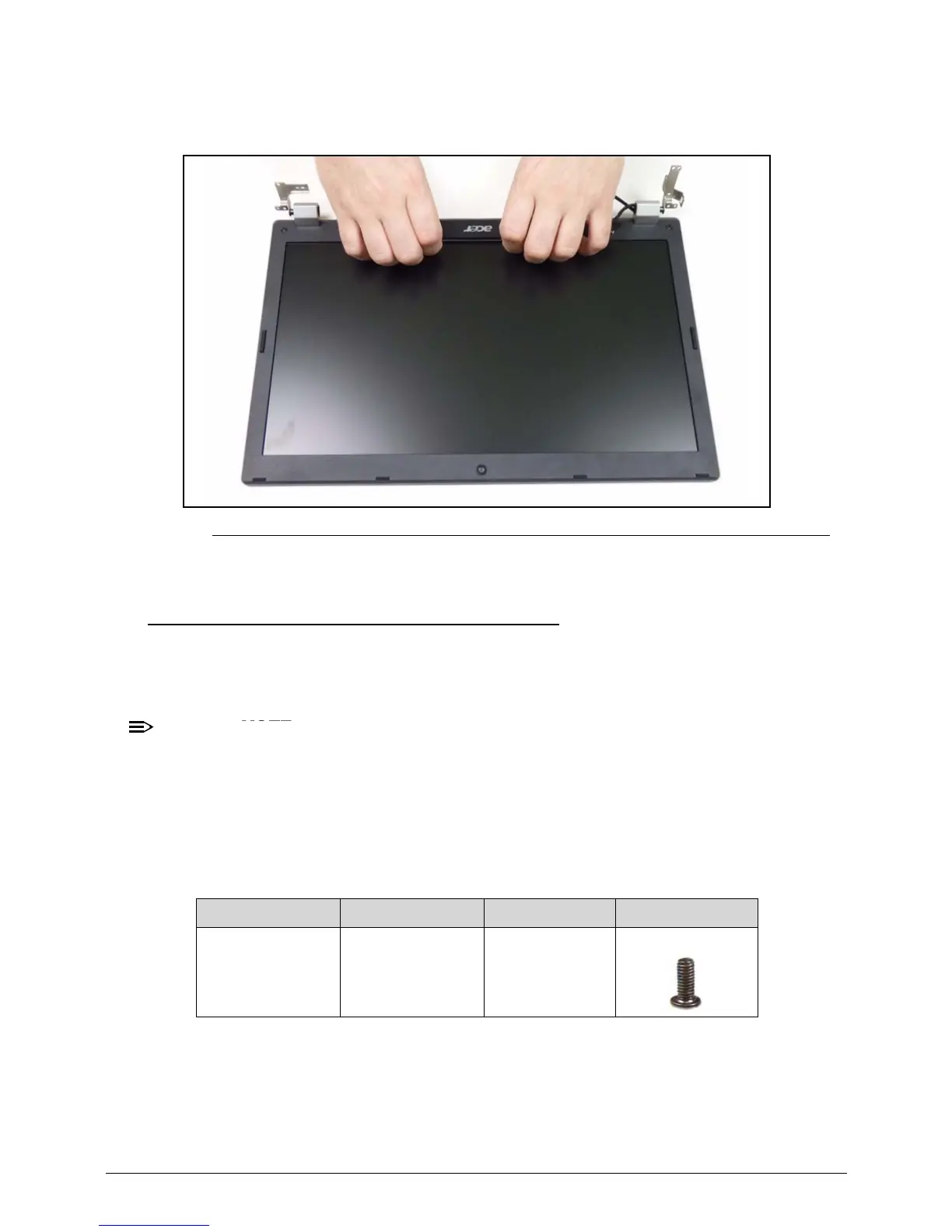

Figure 3-56. LCD Bezel Removal
LCD Bezel Installation 0
1. Locate bezel hinges (C) on LCD module (Figure 3-54).
2. Starting from the top-center of bezel, press down until there are no gaps between bezel
and LCD module hinge wells
NOTE:
NOTE:
Make sure that the LCD cables pass through the hinge wells and are clear of the bezel.
3. Press entire perimeter of bezel until there are no gaps between bezel and LCD module.
4. Install and secure two (2) screws (D) to LCD bezel. (Figure 3-55)
5. Install two (2) mylar covers (B) to LCD bezel. (Figure 3-54)
6. Install LCD Module.
ID Size Quantity Screw Type
D M2.5x5.0 2

Acer TravelMate 5760 Specifications

General

RAM	Up to 8 GB DDR3
Storage	Up to 750 GB HDD
Display Size	15.6 inches
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Professional
Battery	6-cell Li-ion
Weight	2.6 kg
Processor	Intel Core i3/i5/i7
Display Resolution	1366 x 768
Battery Life	Up to 4 hours
Ports	USB 2.0, VGA, HDMI, Ethernet, Audio jacks
Optical Drive	DVD Super Multi DL
Wireless	Wi-Fi 802.11b/g/n
