Acer V551 (new) CRT Monitor Service Guide
Chapter 3 Alignment Procedure
5
Confidence and Property

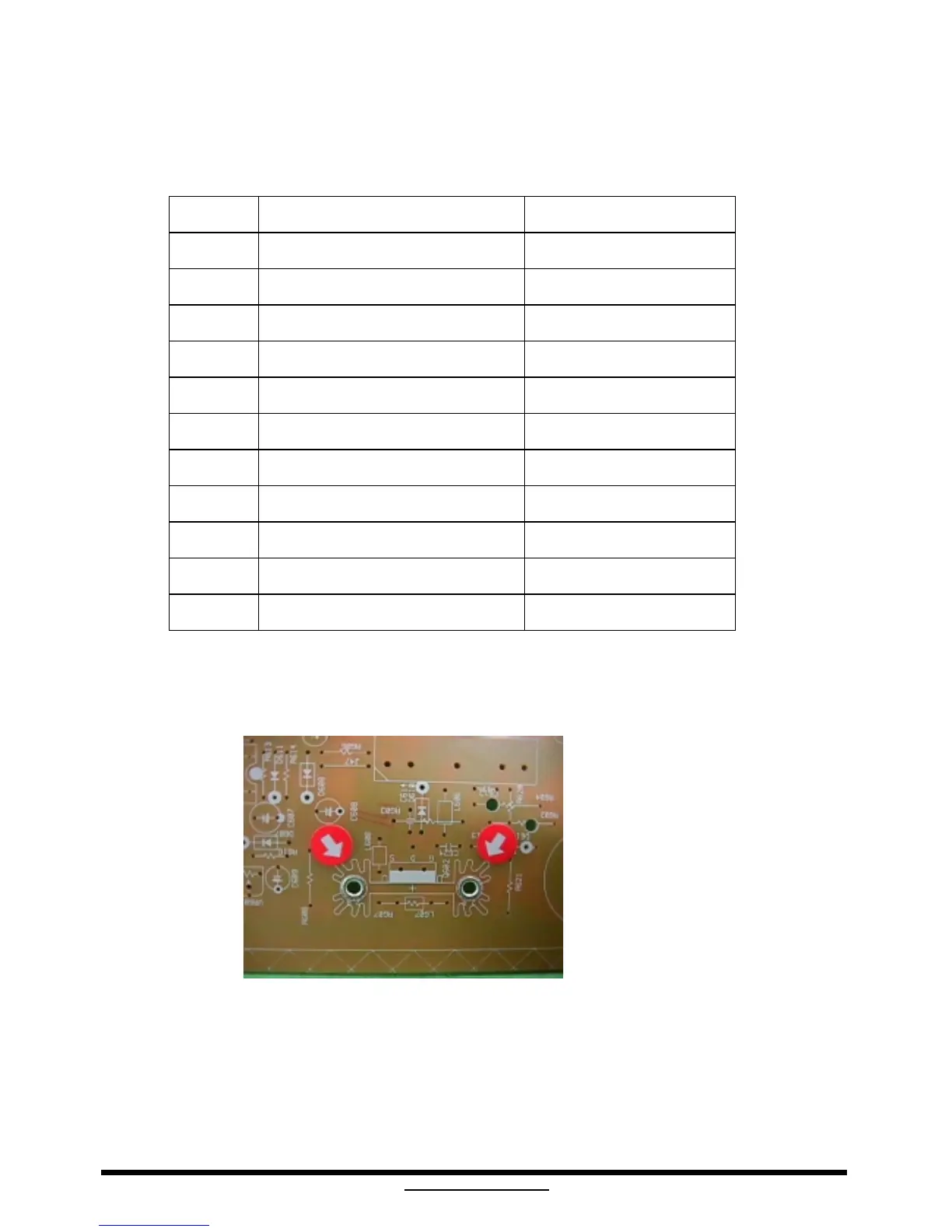

9. Geometry Specification for Production Line
(Table 2)
ITEM DESCRIPTION SPECIFICATION
1 HORI SIZE
270
±
4 mm
2 VERT SIZE
202
±
4 mm
3 SIDE PIN
≦
2.0 mm
4 TOP/BOTTOM PIN
≦
1.0 mm
5 SIDE BARREL
≦
1.0 mm
6 TOP/BOTTOM BARREL
≦
1.0 mm
7 TRAPEZOID
≦
1.0 mm
8 VIDEO OFFSET
≦
4.0 mm
9 PARALLELGRAM
≦
2.0 mm
10 HORI LINEARITY
≦
5 %
11 VERT LINEARITY
≦
5 %
10. Eyelet parts
1. Q602 Heat sink
