10

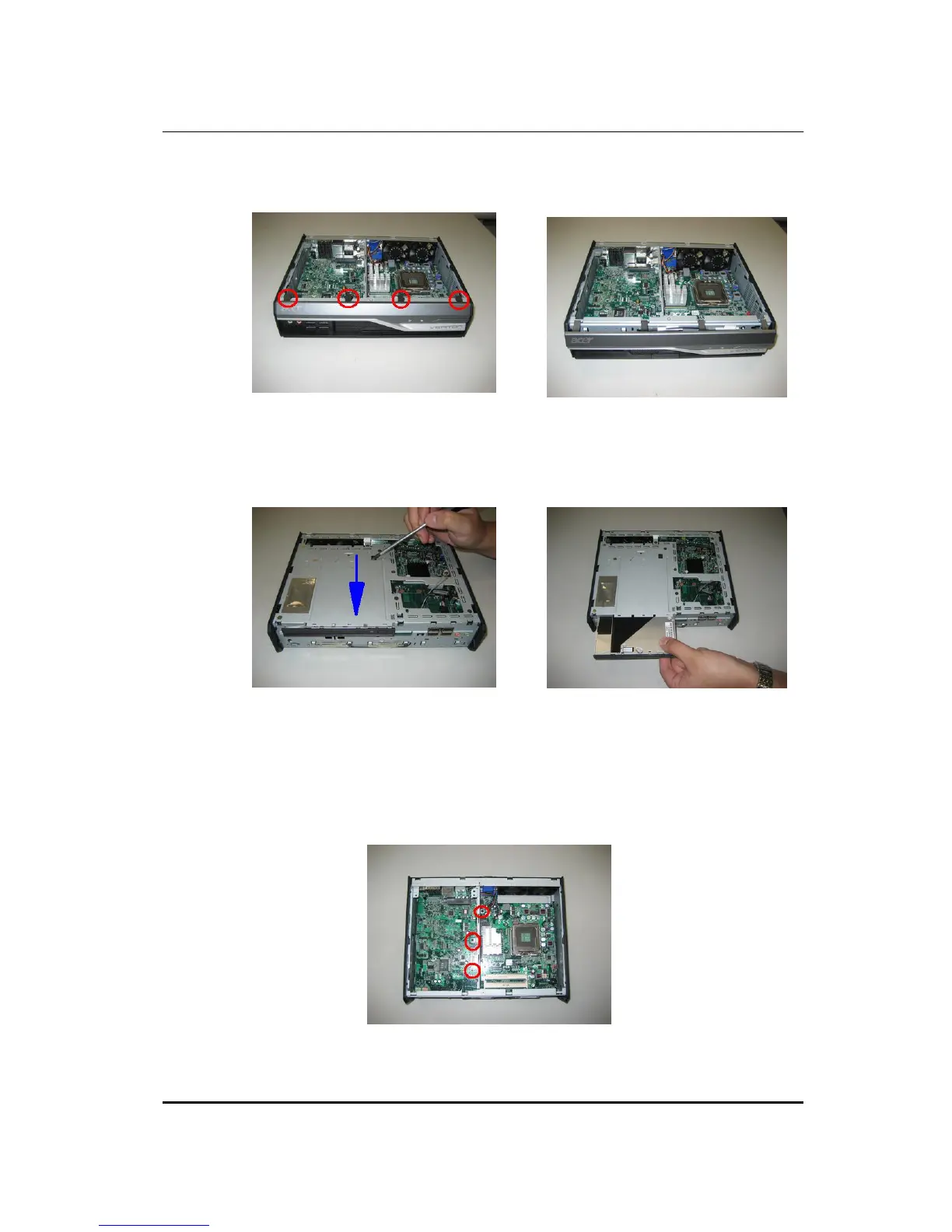

7.2 Remove the four cover Front IO Latches.
7.3 Remove the ODD.
8. Removing the Main Board
8.1 Remove the three screws fixed in the Bracket_Front_IO.
