Chapter 3 59
Install the Heat Sink Fan Assembly

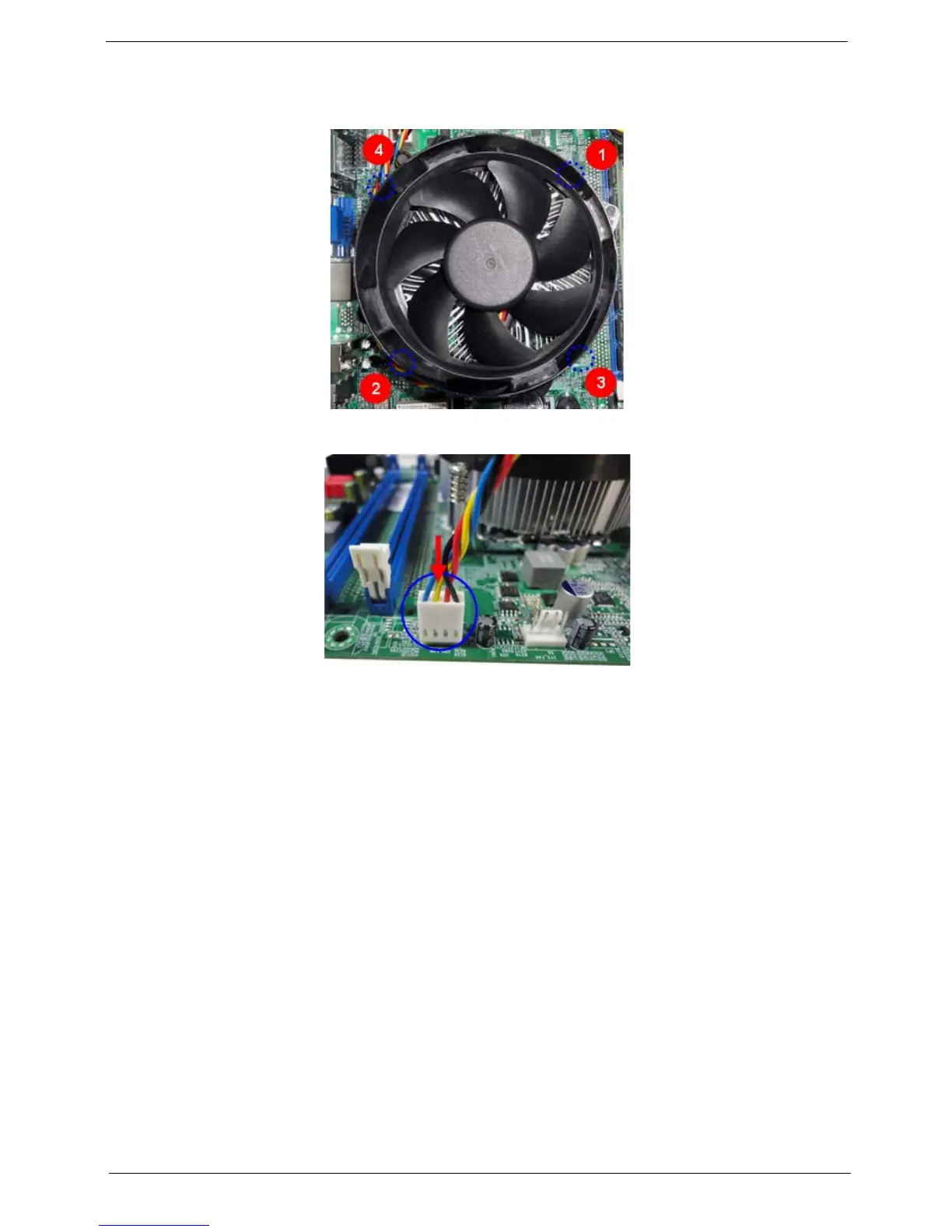

1. Use a long-nosed screwdriver to fix the four screws on the heat sink, in the order as shown below.
2. Connect the fan cable to the mainboard.
