Acer VG220Q - Page 8

8

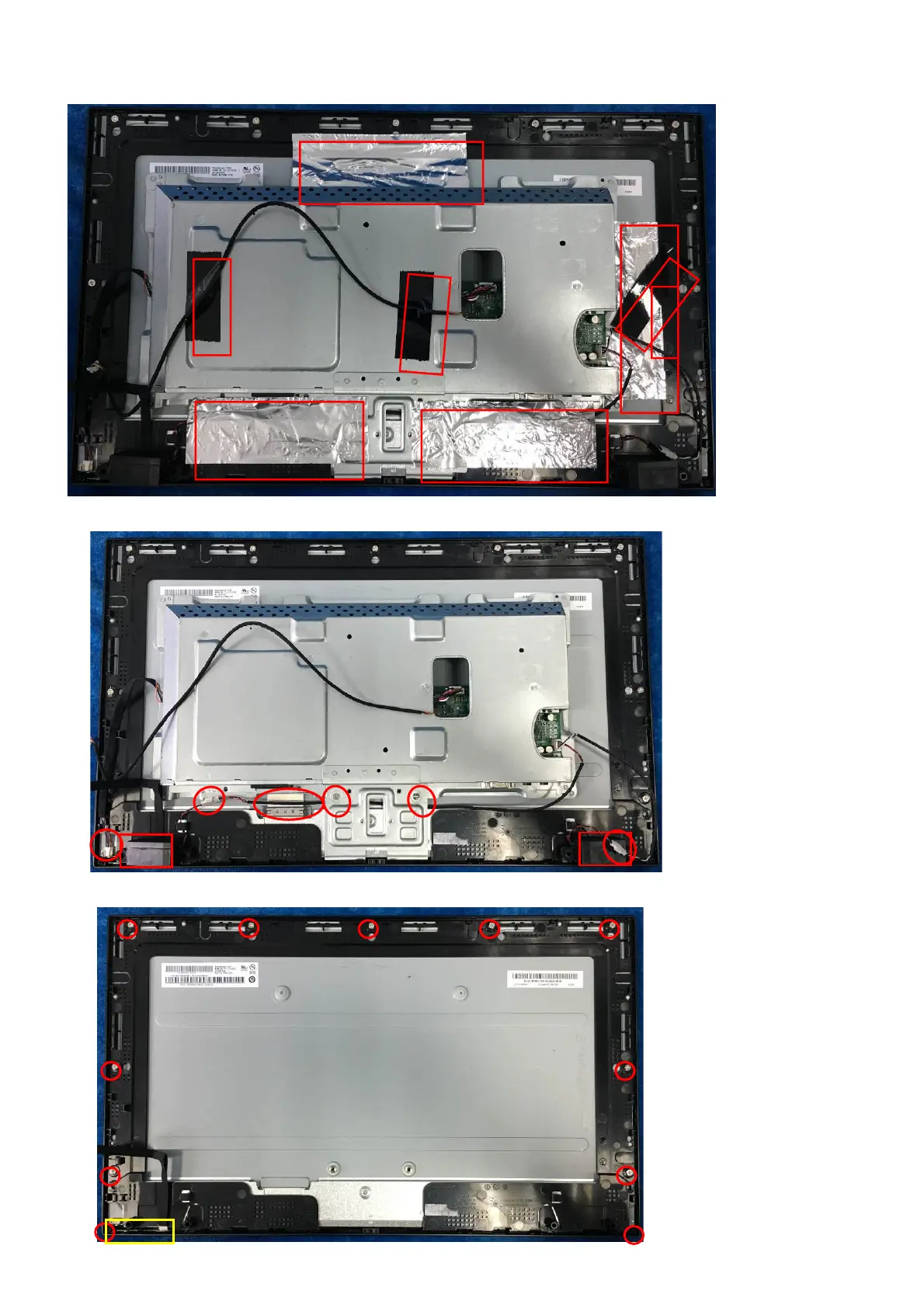

S4. Tear up all tapes and disconnect the LVDS cable (main board to panel), the cables (power board to panel).
Remove the Speakers and unscrew the screws.
S5. Remove the screws to separate the panel and the Middle Frame, LED Board and the DECO BEZEL.
