Acer X193HQ Service Manual

- 21 -

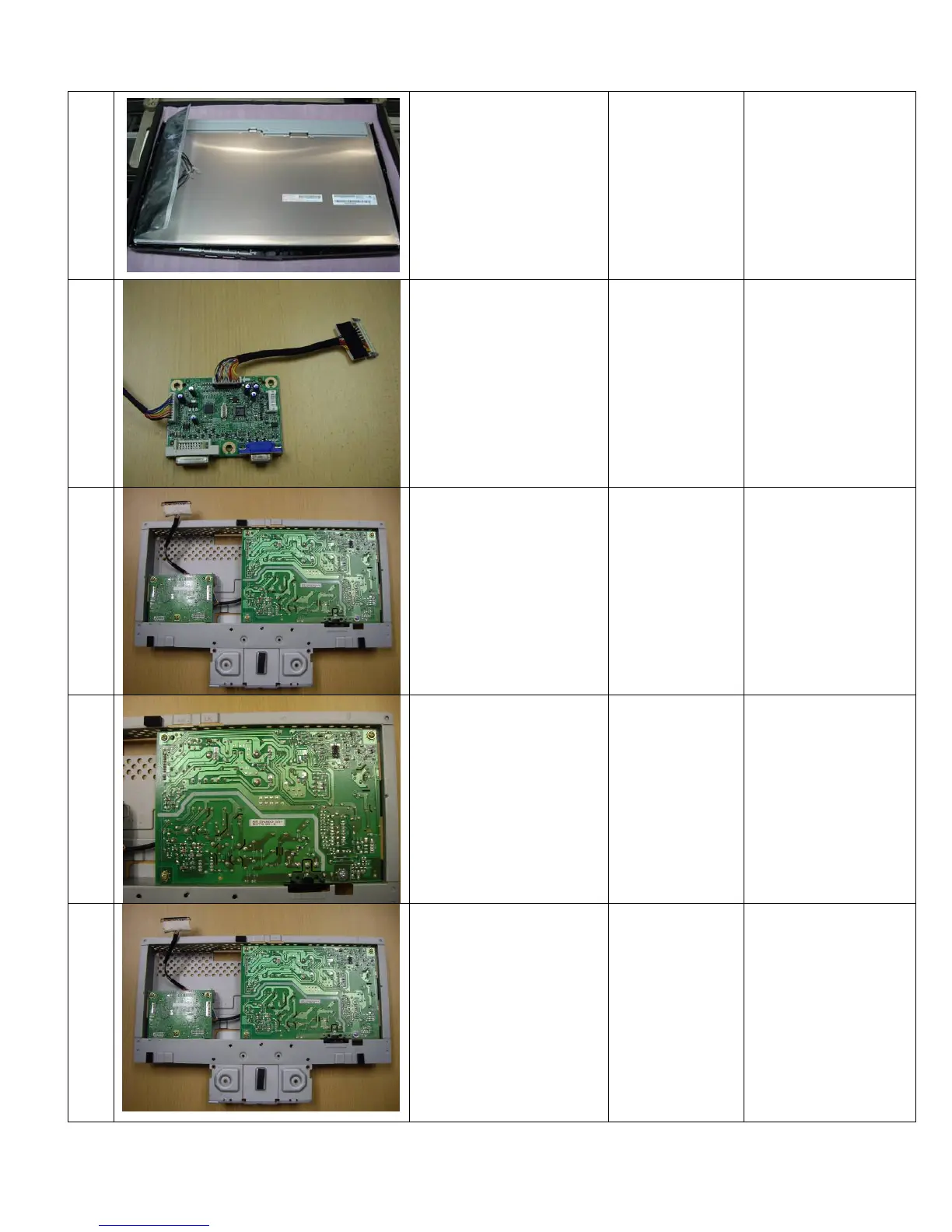

4 Assemble the panel on
CLM-F.
Go to with Left.
5 Assemble PCBA
6 Assemble the PCBA to
Main-Chassis
7 Fix the SPS board by 3
screws.
Screw-driver
7+1Kg*cm
Hole size:
￠2.68±0.03
Screw head:
＃2
Length:60-80
Attention the order
by one to three.
8 Lock screws of
FLAT+EXT and fix the
I/F board by 2 screws.
Screw-driver
7+1Kg*cm
Hole size:
￠2.68±0.03
Screw head:
＃2
Length:60-80
Attention the order
by one to three.

Acer X193HQ Specifications

General

Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Viewable size, vertical	230 mm
Contrast ratio (typical)	-
Viewable size, horizontal	410 mm
Viewing angle, horizontal	160 °
Digital vertical frequency	55 - 75 Hz
Digital horizontal frequency	30 - 80 kHz
Display brightness (typical)	300 cd/m²
HDCP	Yes
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (typical)	17 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	163.7 mm
Width (without stand)	454 mm
Height (without stand)	334.7 mm
Weight (without stand)	3600 g
