2.2 Assembly Procedures:

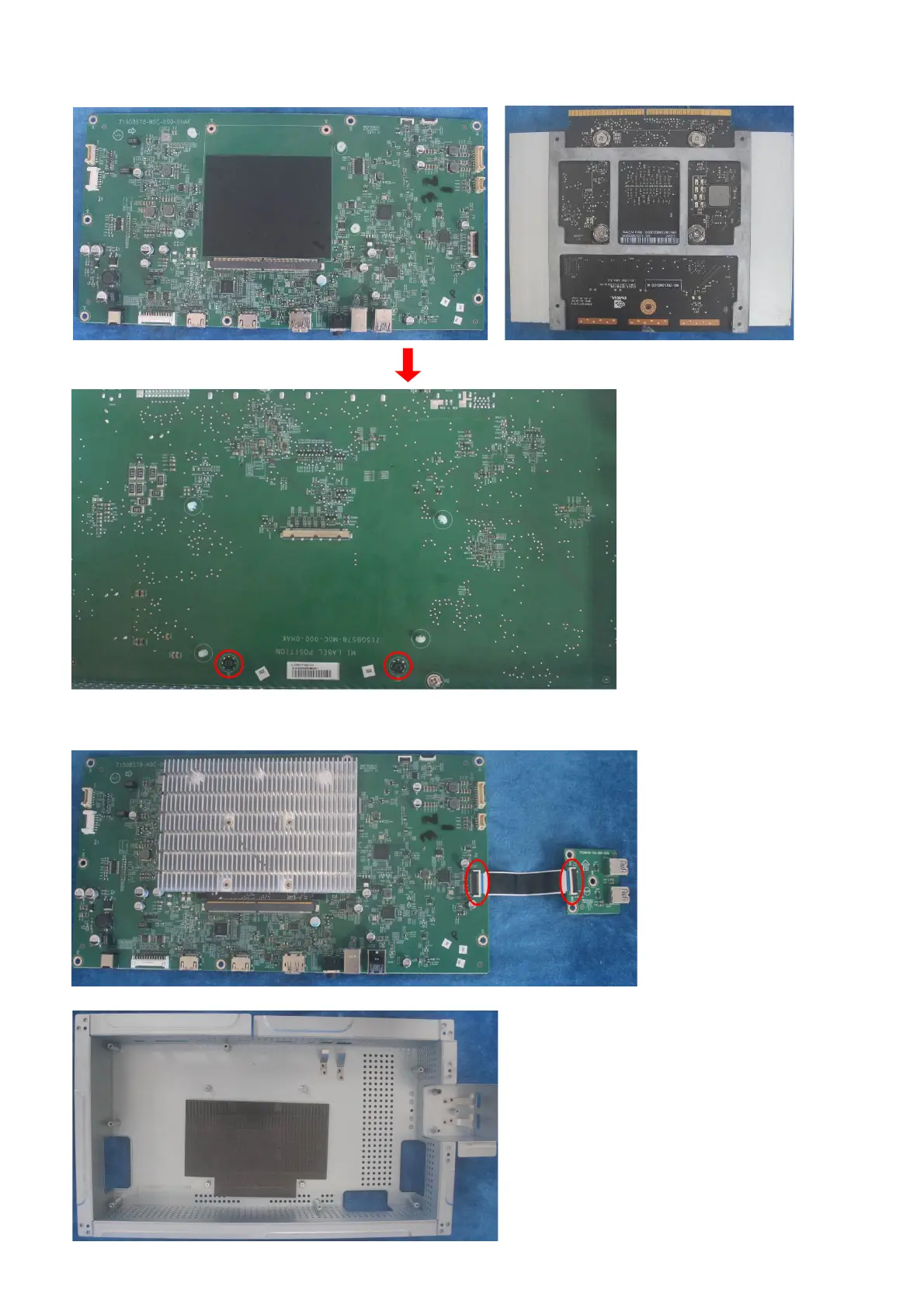

S1. Prepare a Main board and a G-sync board.
Assemble as below
S2 Connect the main board and the USB board. Prepare the mainframe.
Assemble as below.
