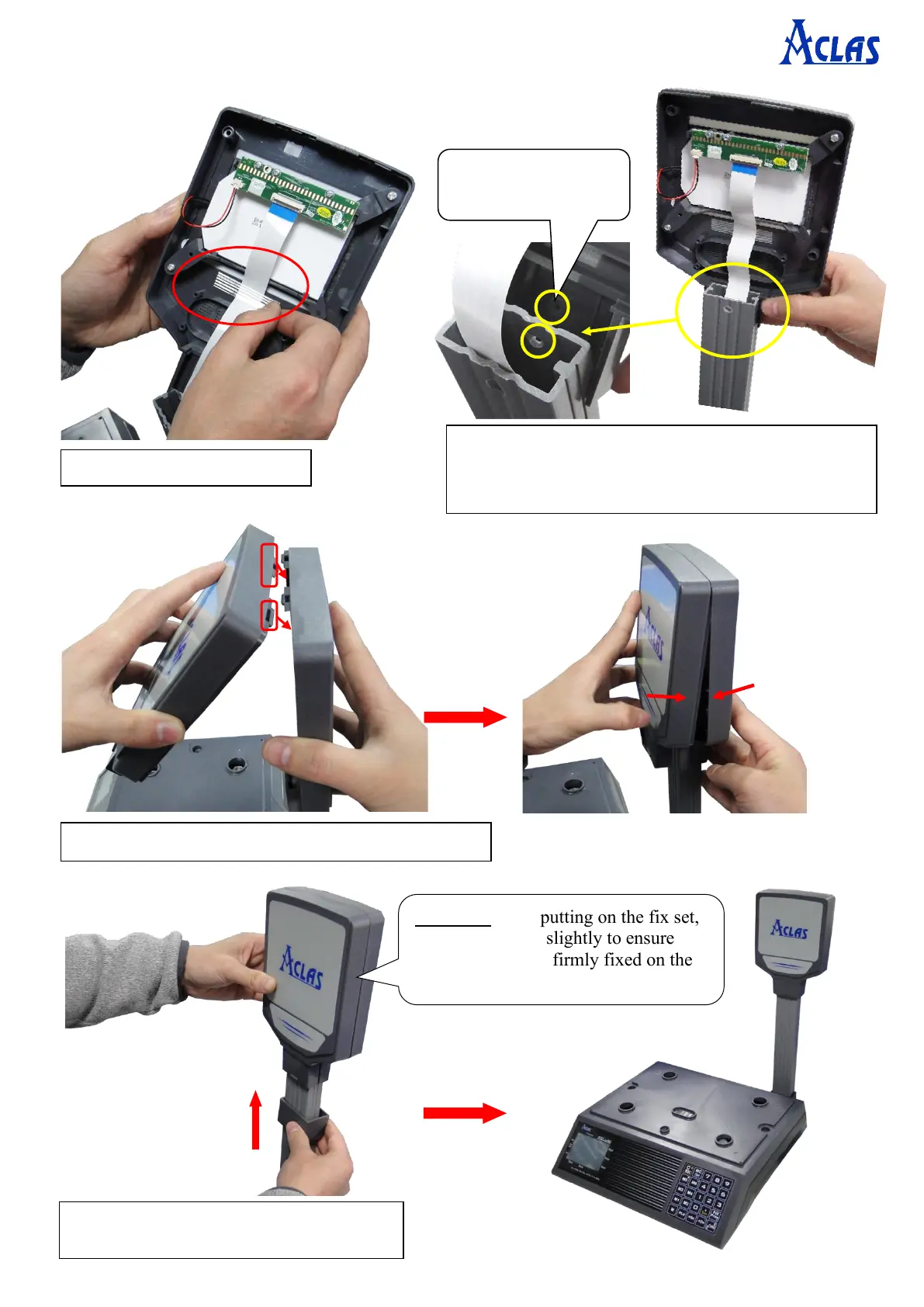

11. Assemble the display as shown in above pictures.
12. Put on the fix set. The whole installation
is finished.
Attention: after putting on the fix set,
lift the display slightly to ensure
that the display firmly fixed on the
display pole.
9. Fix the FFC with the tape.
10. Fix the front cover (with LCD) on display pole.
Insert the FFC through the pole, straighten the cable
then fixing.
Insert “A” column
into hole “B”
A
B
