Note:Before using the rotary module, you need to remove
the drawer and raise the entire machine to a height where
the rotary module can be used normally. (It is recom-
mended to use the ACMER riser kit)
28
7.1.5 How to Use the ACMER M2/M3 Rotary Module
① Connect the rotary module to the engraving machine.

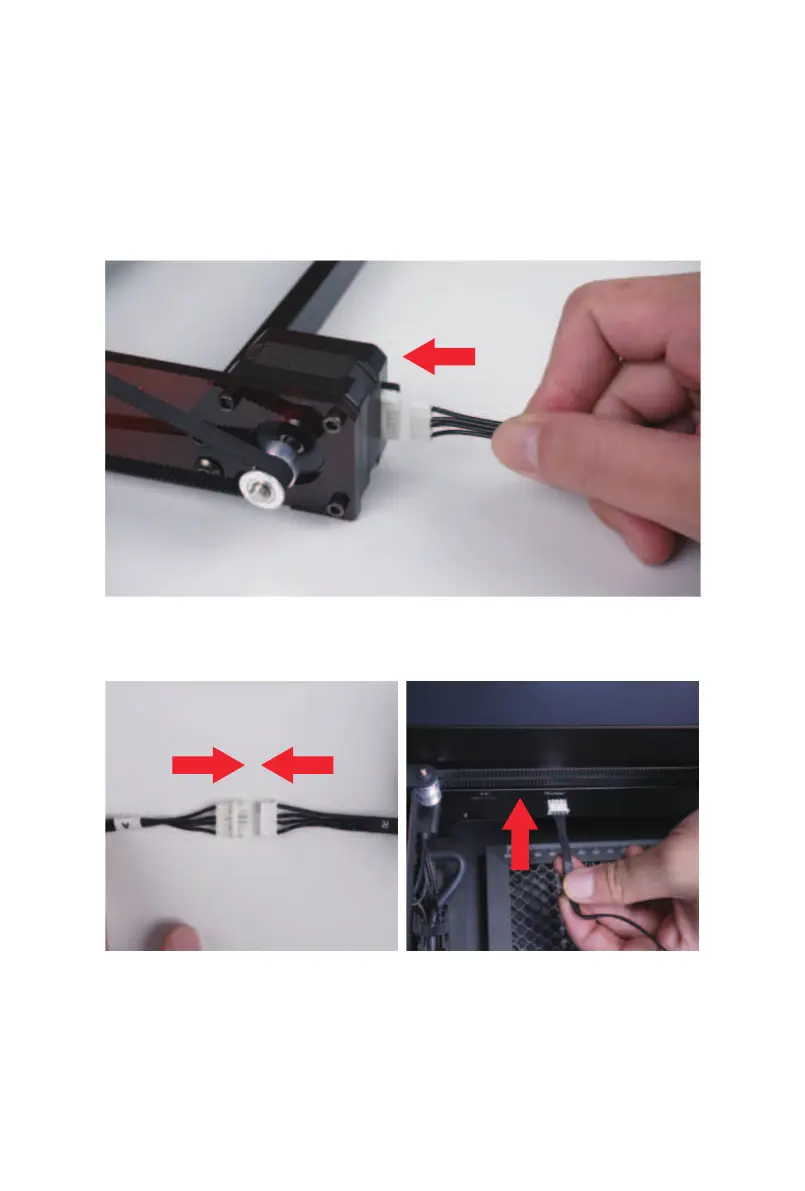

Step 1: Connect one end of the cable(come with the
rotary module) to the rotary module motor.
Step 3: Connect the other
end of the cable to the
interface on the front of the
machine frame.
Step 2: Connect wire A to
wire R
