Master Series Service Manual

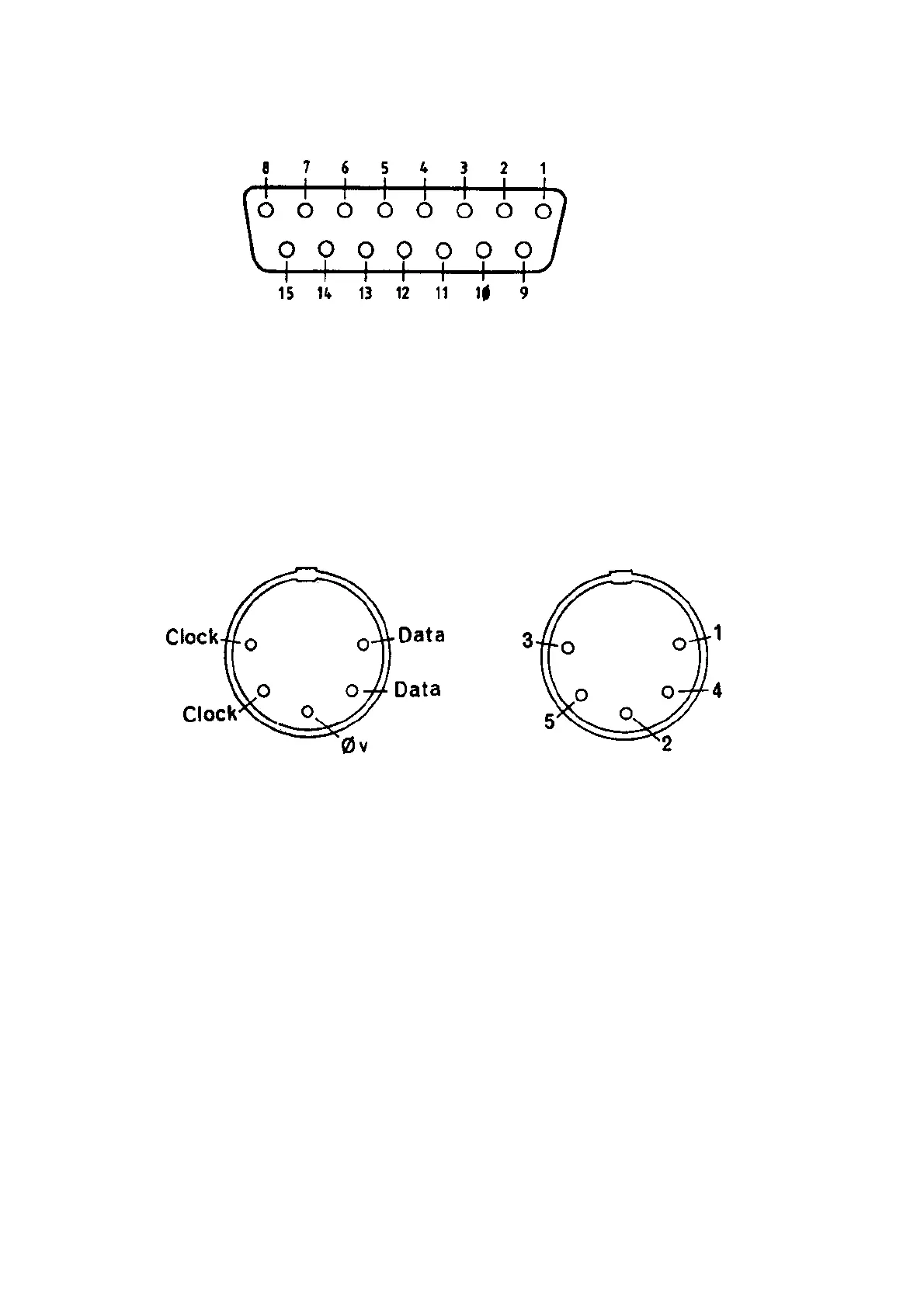

SK12 analogue in

15-way D-type

1 +5V 9 light pen strobe (notLPSTB)

2 0V

10 digital switch input (I1)

3 0V 11 voltage reference (VREF)

4 CH3 12 CH2

5 analogue ground 13 digital switch input (I0)

6 0V 14 voltage reference (VREF)

7 CH1 15 CH0

8 analogue ground

SKI ECONET

5-pin DIN

Issue 1
