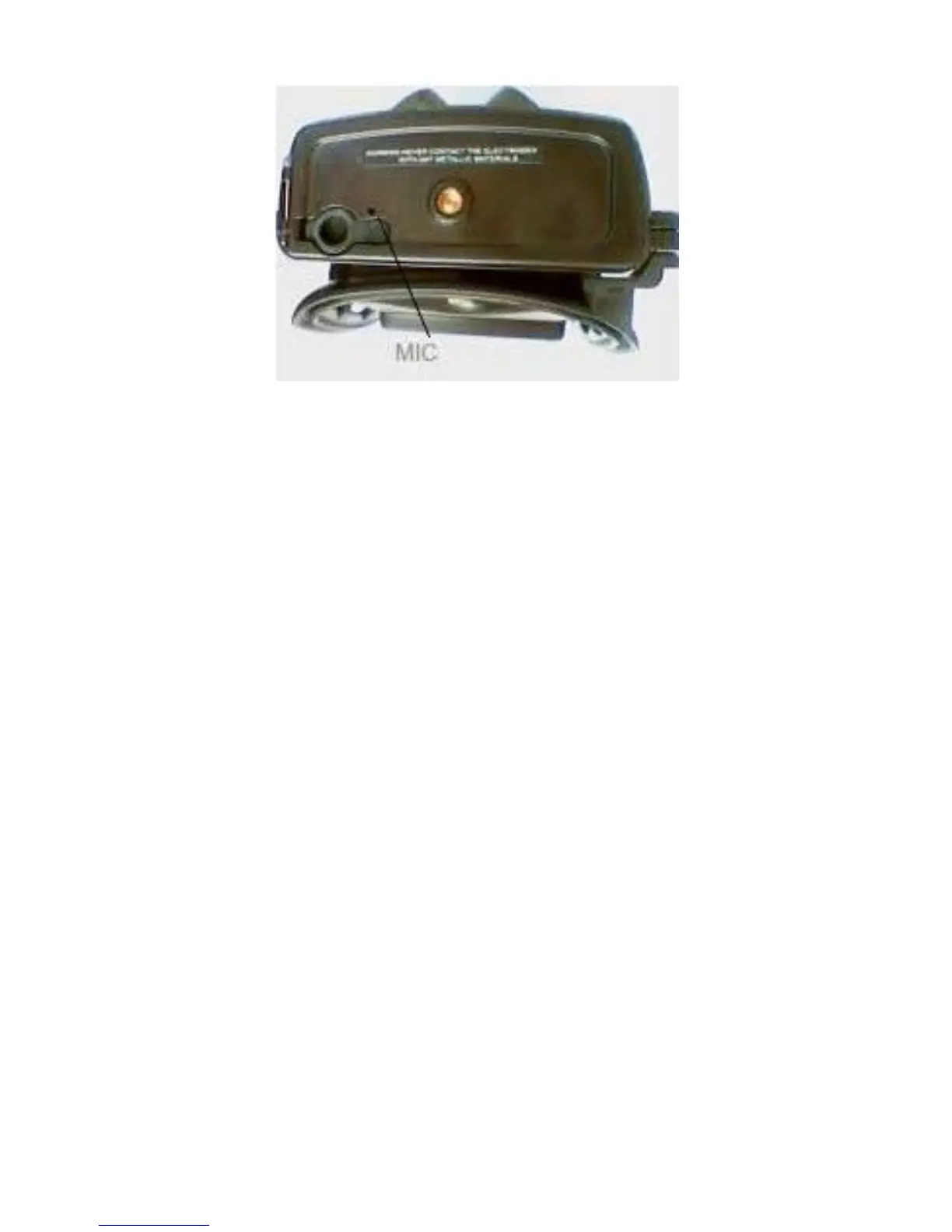

Figure 1.2: Bottom View-2
The camera provides the following connections for external
devices: USB port, SD card slot, TV out jack, and external DC
power in jack. The 3-way Power/Mode Switch is used to select the
main operation modes: OFF, ON and TEST.
To supply power, it is recommended to use four new
high-performance alkaline AA batteries or low self-discharge
Ni-MH chargeable AA batteries. To achieve longer in-field time,
install the additional battery box which contains four more AA
batteries.
