Acorn Ltl 5210A

- 6 -

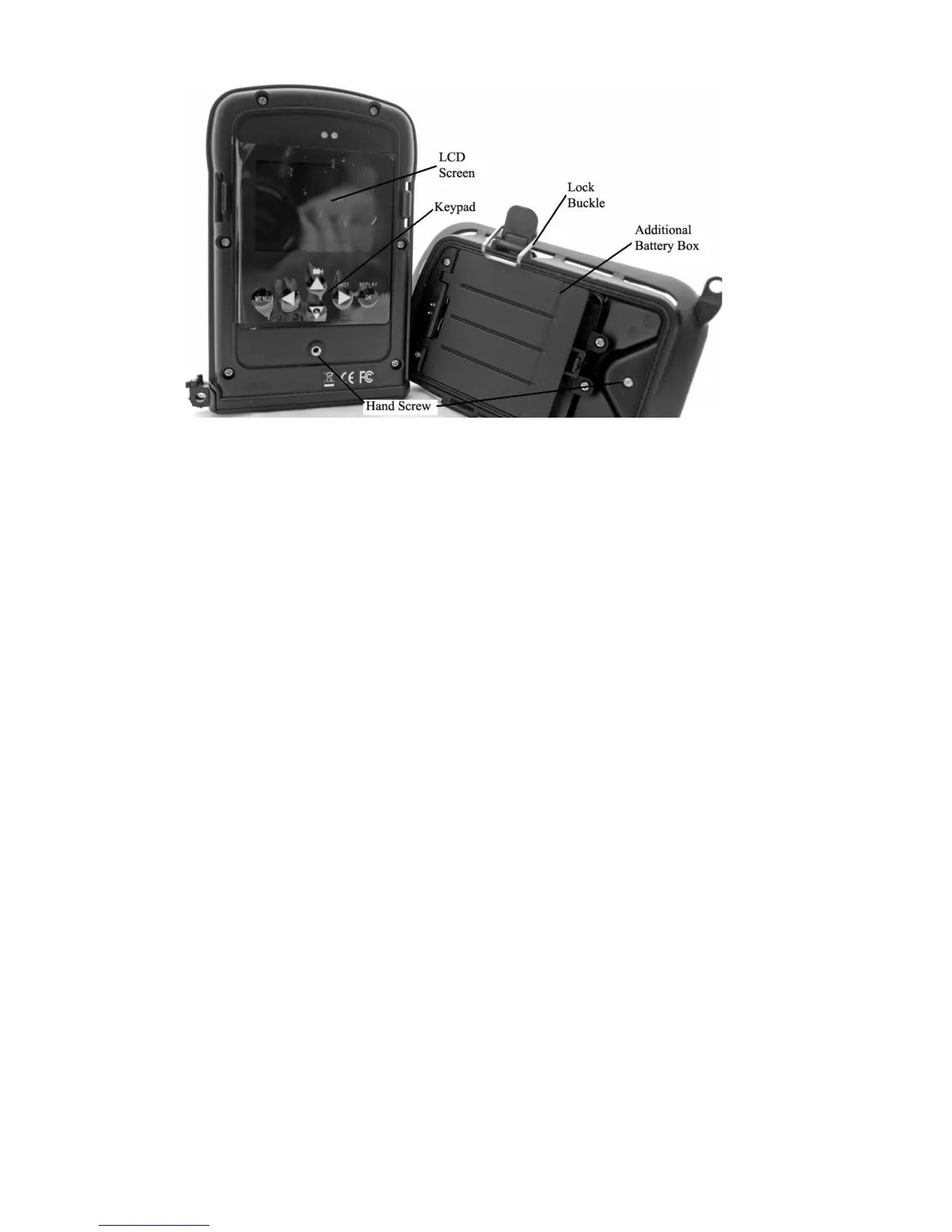

Figure 1.3: Back View
QUICK START
2.1 Load Batteries
Let us begin with loading the batteries. Please follow the
instructions below.
 Open the bottom cover by pulling down the lock hole.

Push the cover of the battery compartment and release.
It will pop out.

Install 4 AA batteries. Make sure the polarity matches
the sign on the cover.
 Replace the cover.
Alternatively the camera can run on an external 6V DC power
source (optional, user provided). When both external power and
