Acoustics Concept 30 - Connections; Terminals and Connectors; Standard Connections; Bi-Wire Connections

8
ENGLISH (EN)
Terminals and Connectors
The Concept Series are bi-wireable. A bi-wireable crossover has four
terminals. The upper pair of terminals connect to the treble (HF) speaker
and the lower pair to the bass (LF) speaker. The crossovers are pre-
tted with removable links to connect the terminal pairs and congure
the loudspeaker in single–wire mode. This allows you to connect the
loudspeaker conventionally using one pair of cables.

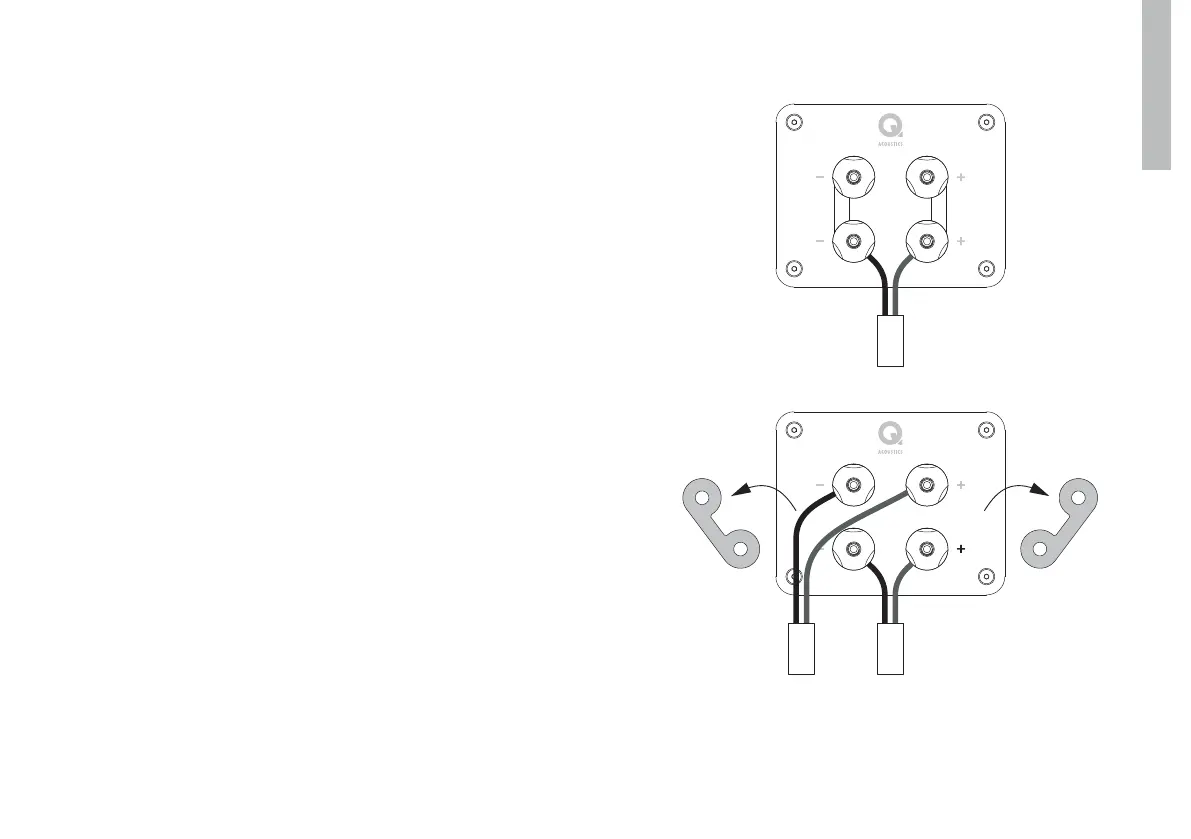

Standard Connections
Connect the RED (+) terminal of the RIGHT loudspeaker to the RED,
Positive (+) terminal on the RIGHT channel of the amplier.
Connect the BLACK (-) terminal of the loudspeaker to the matching
BLACK, Negative (-) terminal of the amplier.
Repeat this procedure for the LEFT channel.
Bi-Wire Connections
To bi-wire: Prepare two twin cables for each loudspeaker. Unscrew all the
loudspeaker terminals and remove both links. Now connect the treble
terminals and the bass terminals to the amplier following the procedure
described in standard connections.
Connections
DESIGNED IN THE UNITED KINGDOM. MADE IN CHINA (PRC)
HF
LF
DESIGNED IN THE UNITED KINGDOM. MADE IN CHINA (PRC)
HF
LF
Standard Connections
Bi-Wire Connections
