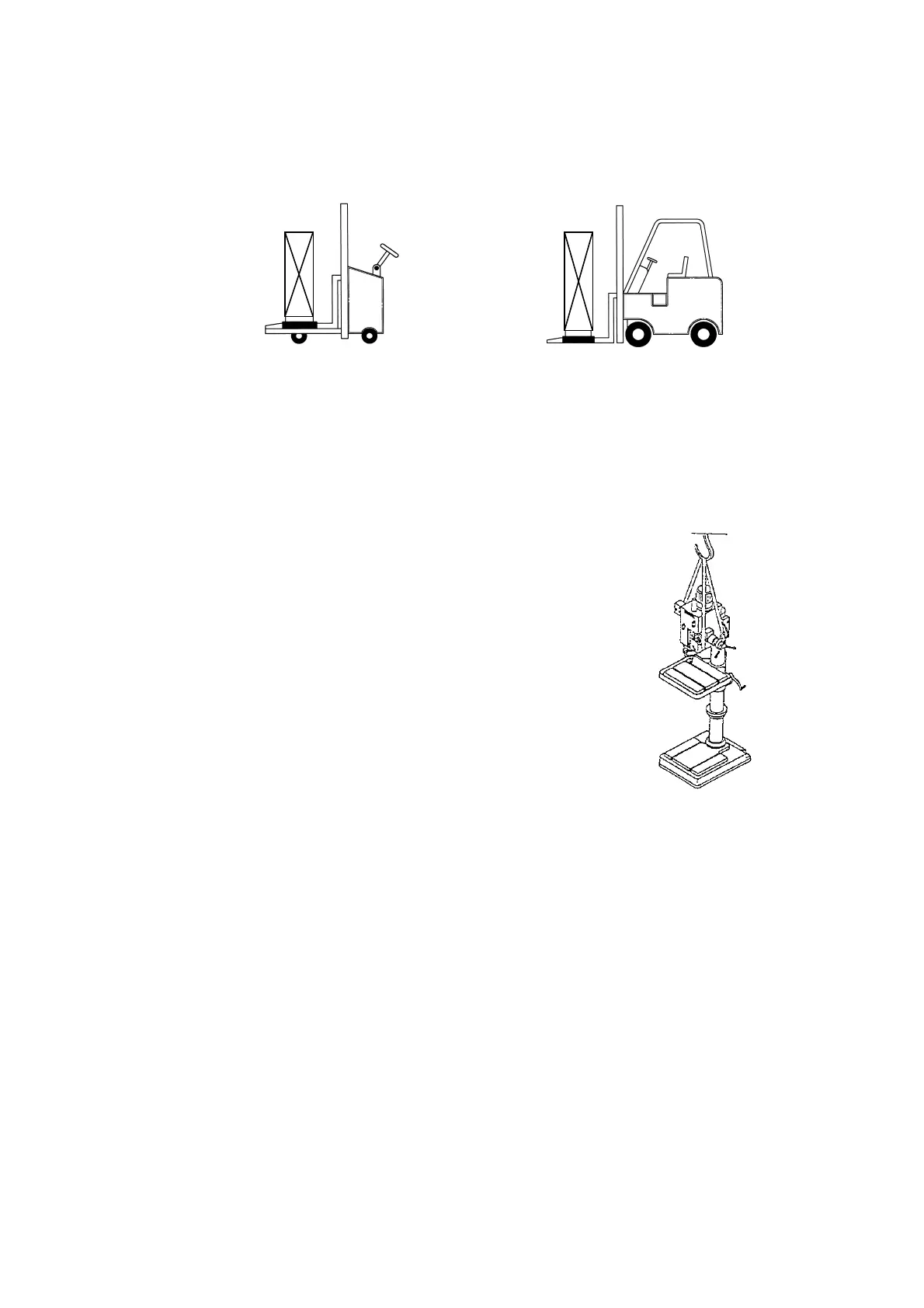

Fig.B
Installation:
(1) BE SURE all locks of head-stock & column are tighten before operation.
(2) ALWAYS Keep proper footing & balance while moving this
760lbs machine. And only use heavy duty fiber belt to lift the
machine.
(3) KEEP machine always out from sun, dust, wet, raining area.
(4) POSITION & tighten 3 bolts into base holes properly after
machine in balance.
(5) TURN OFF the power before wiring & be sure machine in proper
grounding. Overload & circuit breaker is recommended for safety
wiring.
(6) CHECK carefully if main shaft in clockwise direction while
running test. If not, reverse the wiring then, repeat the test till
spindle direction is correct.
(7) Finish removing this wooden case/crate from the machine. Unbolt the machine from the crate
bottom.
(8) Bolt the stand legs to the floor, while using a sturdy stand.
