Acson ACC-D Series - 5 Selection Process; Fan Performance Chart

26
Fan Performance Chart

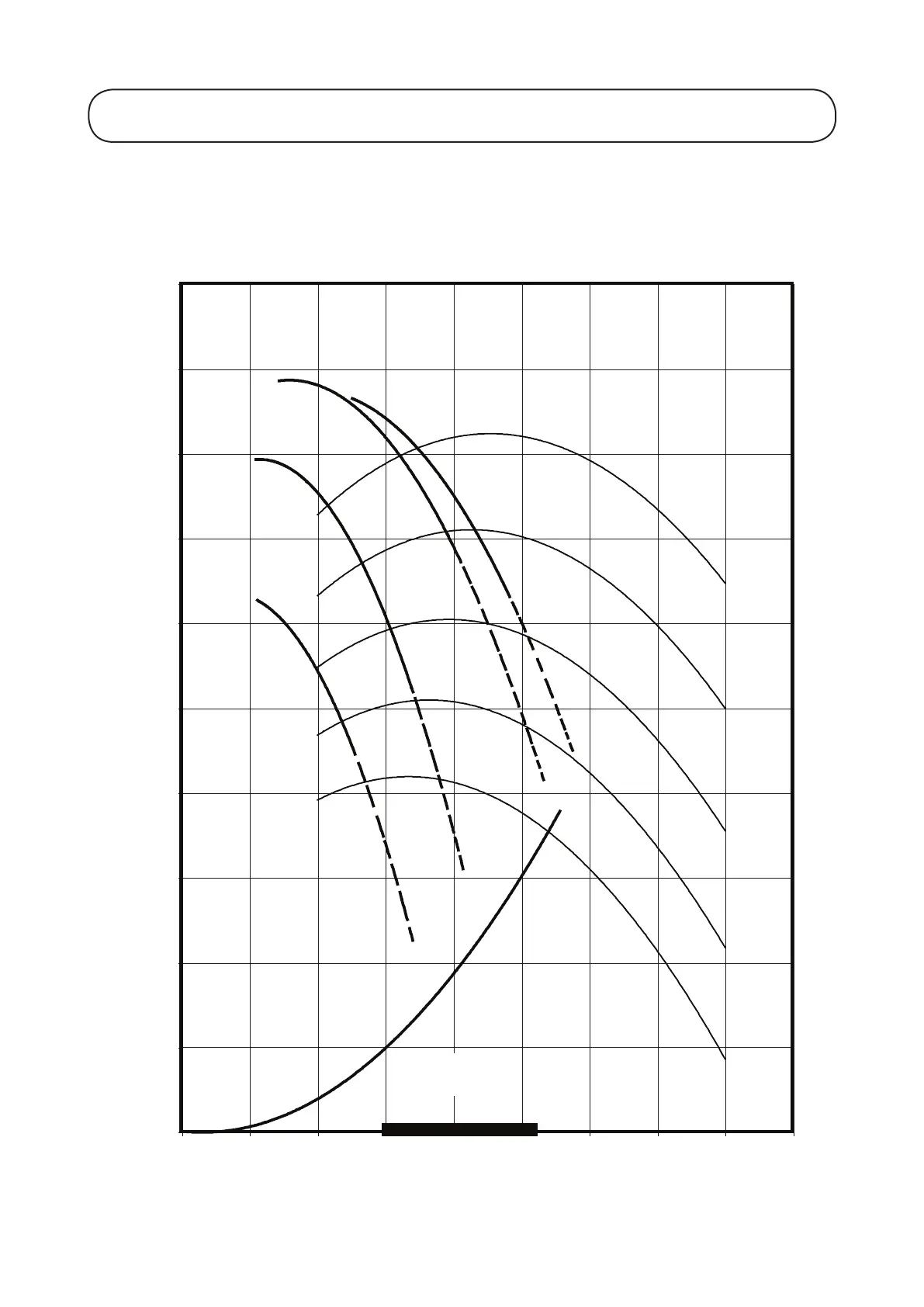

ACC 75D/DR BLOWER PERFORMANCE CURVE
0
5
10
15
20
25
30
35
40
45
50
0 500 1000 1500 2000 2500 3000 3500 4000 4500
Flowrate, (CFM)
Total Static Pressure, (mm w.g.)
1000
RPM
1100
RPM
1200
RPM
1300
RPM
1400
RPM
INTERNAL
STATIC
SH
H
M
L
5. SELECTION PROCESS
