Model: ACC 75D/DR
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
No Description
Part No
No Description
Part No
1
Assy, Panel Front Base
R50014076024
16
Panel, Side Big Right R01014073365
2
Panel, Back Base
R01014074050
17
Bracket, Drain Pump Cover R01014077181
3
Assy, Drain Pan
R50019023584
18
Switch, Level R04069022966
4
Assy, Coil Tubing
19
Assy. Terminal Box
ACC 75D
R50024078270 ACC 75D R50044080388
ACC 75DR
R50024074055 ACC 75DR R50044076981
5
Cover, Coil Right
R01014073369
20
Cover, Filter L/R R01014074119
6
Cover, Coil Left
R01014073370
21
Hanger R01014032372
7
Flange, Filter Right
R01014073811
8
Flange, Filter Left
R01014073810 Handset, Wired Netware3 ACSON R04089023827
9
Rail, Filter (CC75D/DR)
R12014076976
Control Module
10
Drain Pan Seperator
R01014077402 ACC 75D R04089025212
11
Assy, Panel Top
R50014073371 ACC 75DR R04089023681
12
Flange, Filter T/B
R01014074120
Air Filter R03084076998
13
Assy, Fan Deck
R50034074053
Valve, TXV
14
Panel, Side Left
R01014073368 ACC 75D R05019015343
15
Panel, Header Small Right
R01014073366
ACC 75DR R05019022121
Parts Not Shown in Diagram

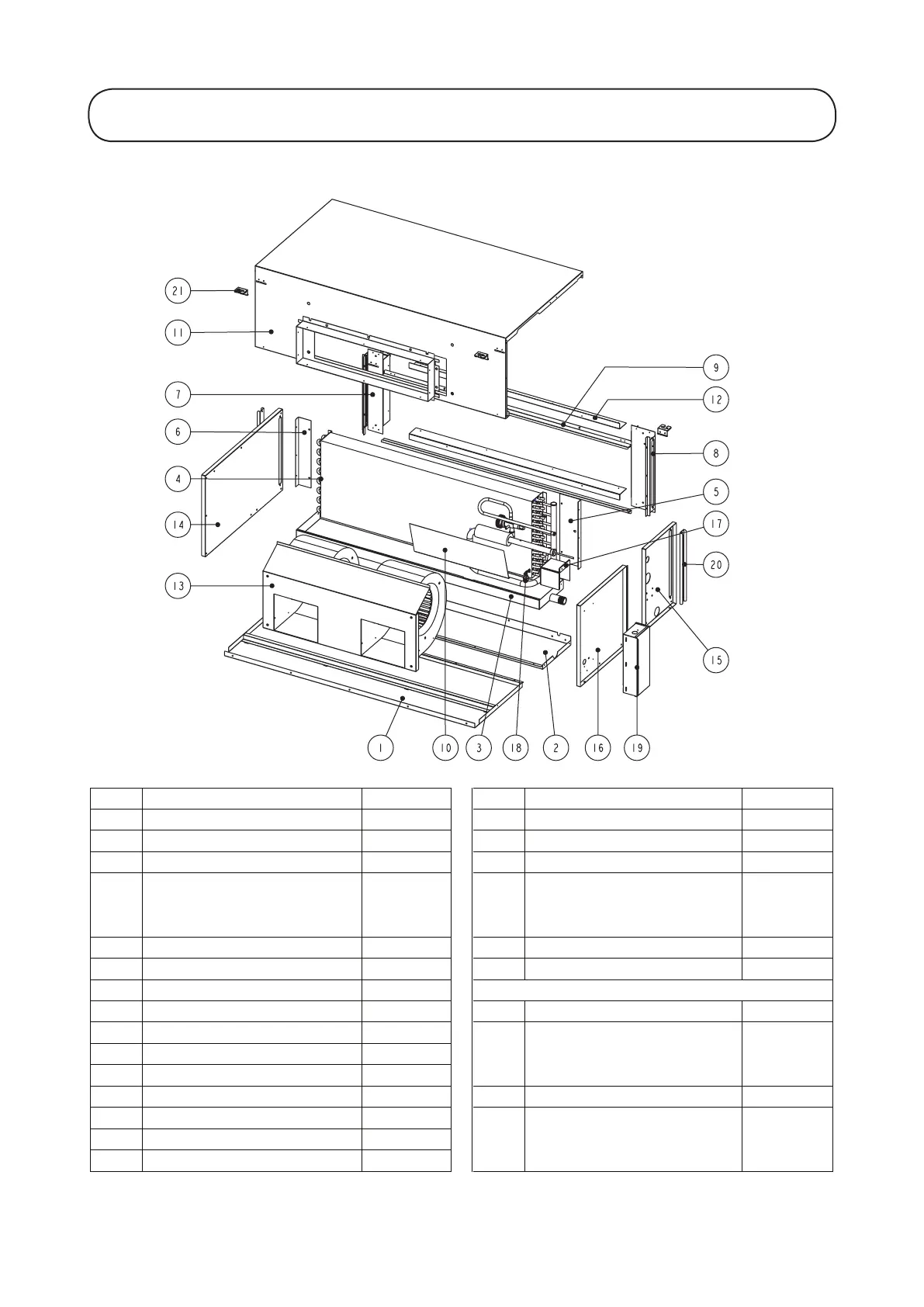

13. EXPLODED VIEW & PART LIST
