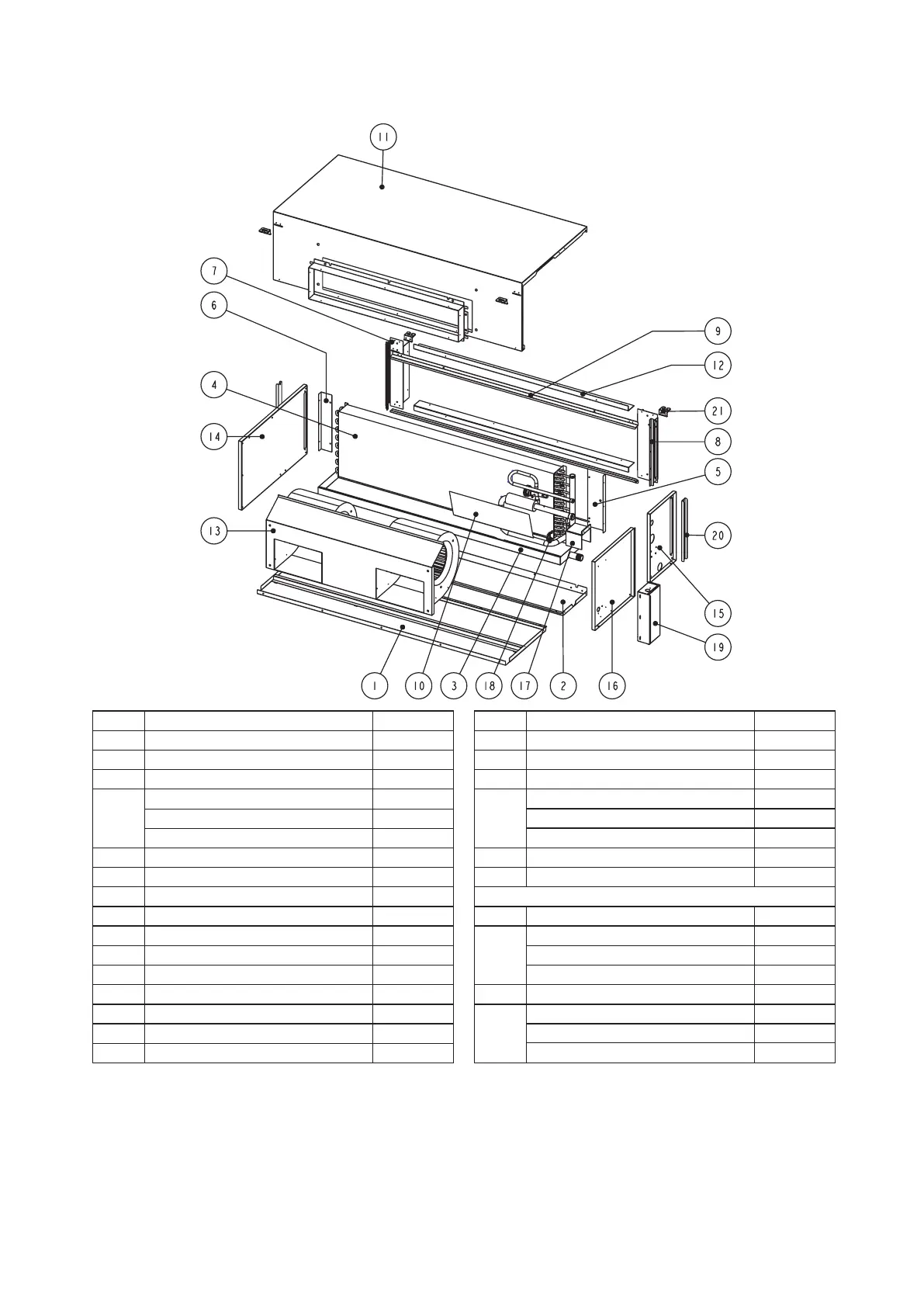

Model: ACC 100D/DR
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
No Description Part No No Description
Part No
1 Assy, Panel Front Base R50014076025 16 Panel, Side Big Right
R01014073365
2 Panel, Back Base R01014073346 17 Bracket, Drain Pump Cover
R01014077181
3 Assy, Drain Pan R50019023585 18 Switch, Level
R04069022966
4 Assy, Coil Tubing 19 Assy. Terminal Box
ACC 100D R50024078271 ACC 100D
R50044080388
ACC 100DR R50024073351 ACC 100DR
R50044076981
5 Cover, Coil Right R01014073369 20 Cover, Filter L/R
R01014074119
6 Cover, Coil Left R01014073370 21 Hanger
R01014032372
7 Flange, Filter Right R01014073811
8 Flange, Filter Left R01014073810 Handset, Wired Netware3 ACSON
R04089023827
9 Rail, Filter (CC100D/DR) R12014076977 Control Module
10 Drain Pan Seperator R01014077402 ACC 100D
R04089025212
11 Assy, Panel Top R50014074594 ACC 100DR
R04089023681
12 Flange, Filter T/B R01014073812 Air Filter
R03084076997
13 Assy, Fan Deck R50034073347 Valve, TXV
14 Panel, Side Ledt R01014073368 ACC 100D
R05019015344
15 Panel, Header Small Right R01014073366 ACC 100DR
R05019022121
