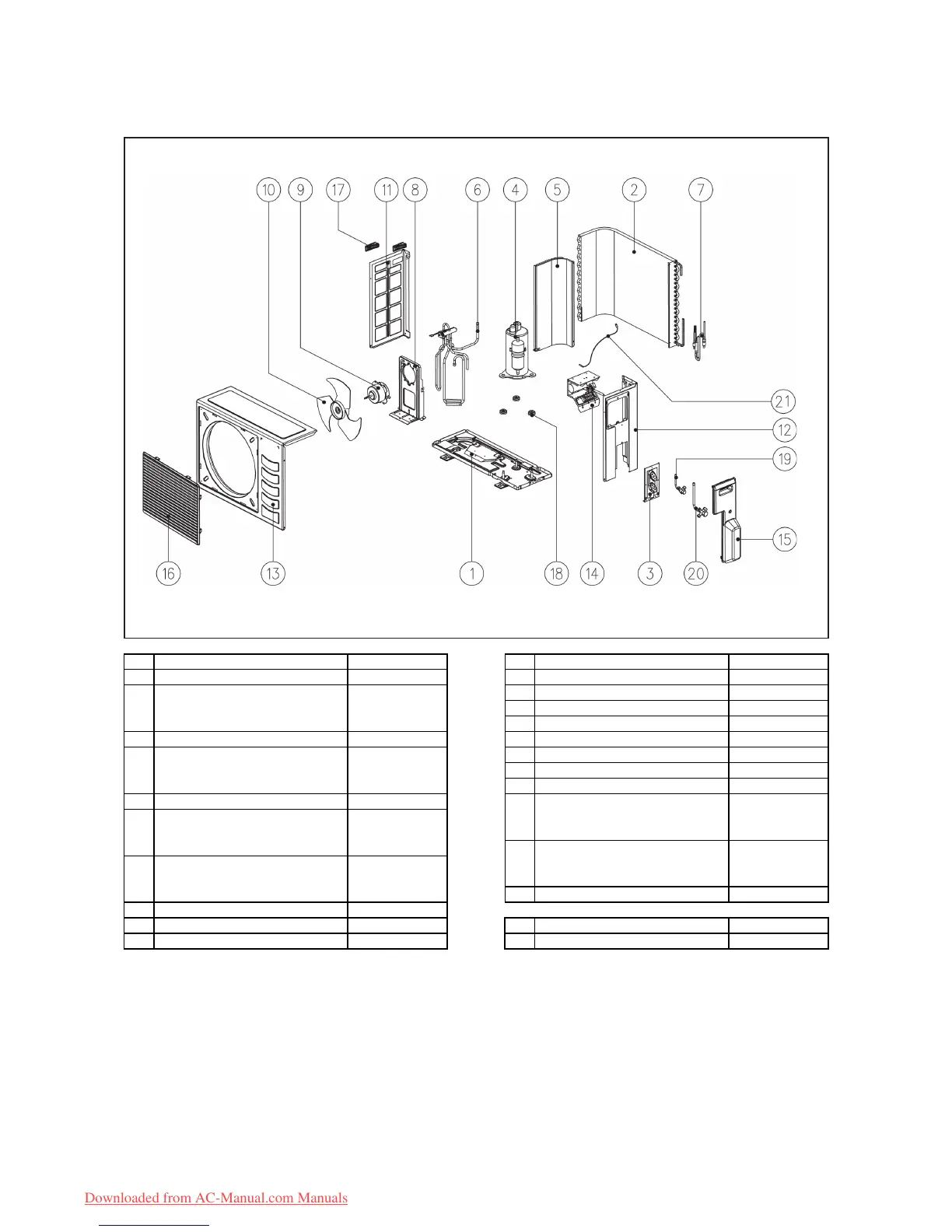

MODEL: ALC / A5LC 15CR
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
No Description Part No No Description Part No
1 Assy. Base Pan R50014051158 11 Left Panel R01014051166
2 Assy. Outdoor Coil 12 Right Panel R01014051167
ALC 15CR A50024086953 13 Assy., Front Panel R01014051171
A5LC 15CR R50024084998 14 Assy., Control Panel R50044086063
3 Valve Bracket R01014051164 15 Assy., Valve Cover R50124051173
4 Compressor 16 Assy., Front Grille R50124056700
ALC 15CR R04019019125 17 Plastic Handle R12014057948
A5LC 15CR R04019026326 18 Rubber Grommet R11054000271
5 Assy., Partition R50064055063 19 Assy., Flare Valve 2 Ways 1/4"
6 Assy., 4 Way Valve ALC 15CR R50054054950
ALC 15CR A50024087158 A5LC 15CR R50059019453
A5LC 15CR R50024084737 20 Assy., Flare Valve 3 Ways 1/2"
7 Assy., Cap Tube ALC 15CR R50054064042
ALC 15CR A50024087023 A5LC 15CR R50059019452
A5LC 15CR R50024084738 21 Sensor, Outdoor Defrost R50134039416
8 Bracket, Fan Motor R01014051162 Parts Not in Diagram
9 Fan Motor R03039015323 Capacitor, Fan Motor R04029026755
10 Fan Blade R03019015339 Capacitor, Compressor R04029026776
