120

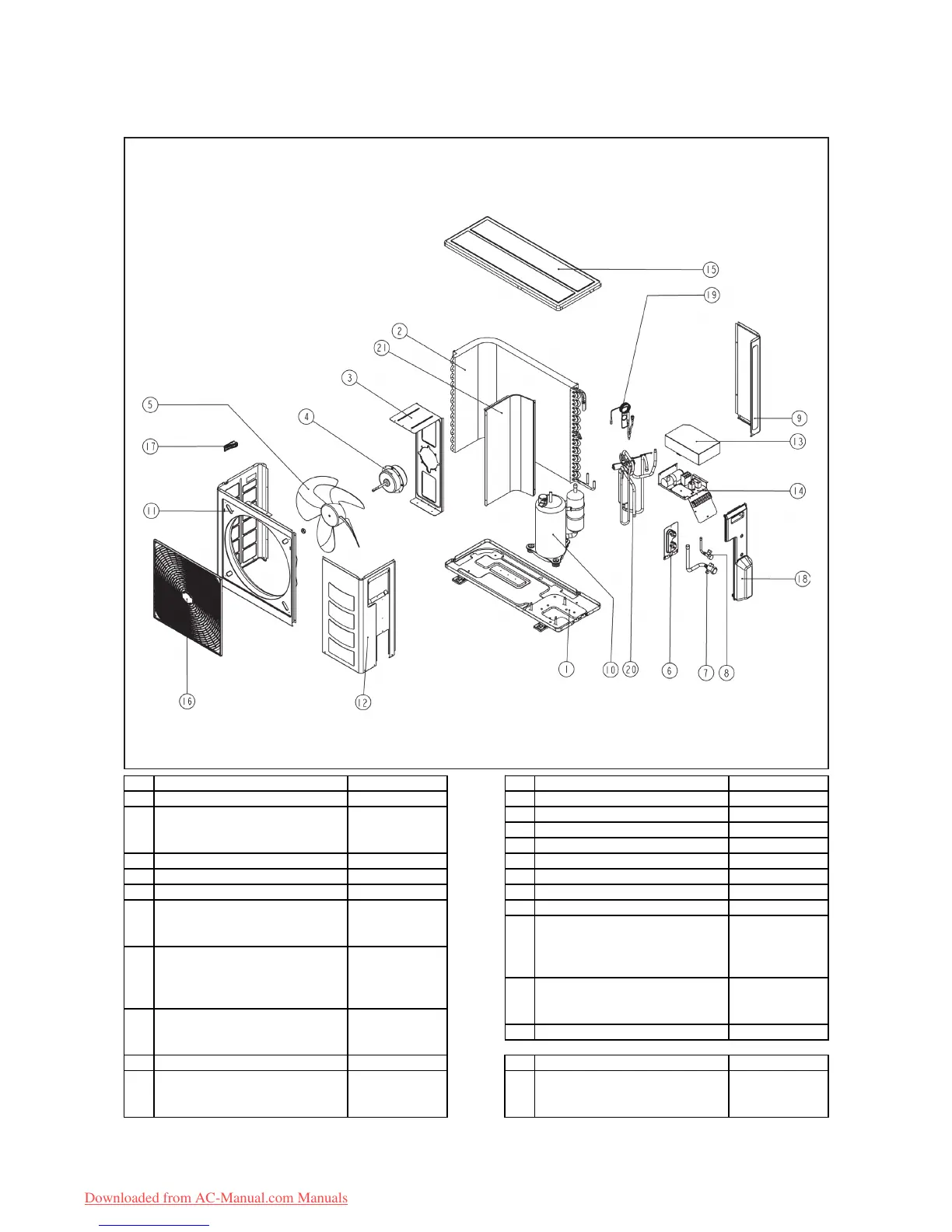

MODEL: ALC 18CR, ALC / A5LC 20CR
1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
No Description Part No No Description Part No
1 Assy. Base Pan R50014078281 11 Front Panel, Left R01014070597
2 Assy. Outdoor Coil 12 Service Panel R01014070598
ALC 18CR R50024090296 13 Terminal Cover Panel R01014070838
ALC / A5LC 20CR R50024075143 14 Assy. Control Panel R50014072877
3 Motor Bracket R01014070601 15 Top Panel R01014070596
4 Fan Motor R03039024539 16 Assy. Front Grille R50124072880
5 Fan Blade R03019023393 17 Plastic Handle R12014057948
6 Valve Bracket 18 Assy. Valve Cover R50124072885
ALC 18/20CR A50014072861 19 Assy. Cap Tube
A5LC 20CR R50014078280 ALC 18CR R50024089931
7 ALC 18/20CR ALC 20CR R50024087058
Assy. Flare Valve 3 Ways 5/8" R50054072863 A5LC 20CR R50024081904
A5LC 20CR 20 Assy. 4 Way Valve
Assy. Flare Valve 3 Ways 1/2" R50059023335 ALC 18/20CR R50054077222
8 Assy. Flare Valve 2 Ways 1/4" A5LC 20CR R50059024520
ALC 18/20CR R50059022156 21 Partition R01014070603
A5LC 20CR R50059023334 Parts Not in Diagram
9 Back Panel, Right R01014070599 Capacitor, Fan Motor R04029026759
10 Compressor Capacitor, Compressor
ALC 18/20CR A04019027266 ALC 18/20CR R04029026782
A5LC 20CR R04019020625 A5LC 20CR R04029026779
